Hans Kit

Description :

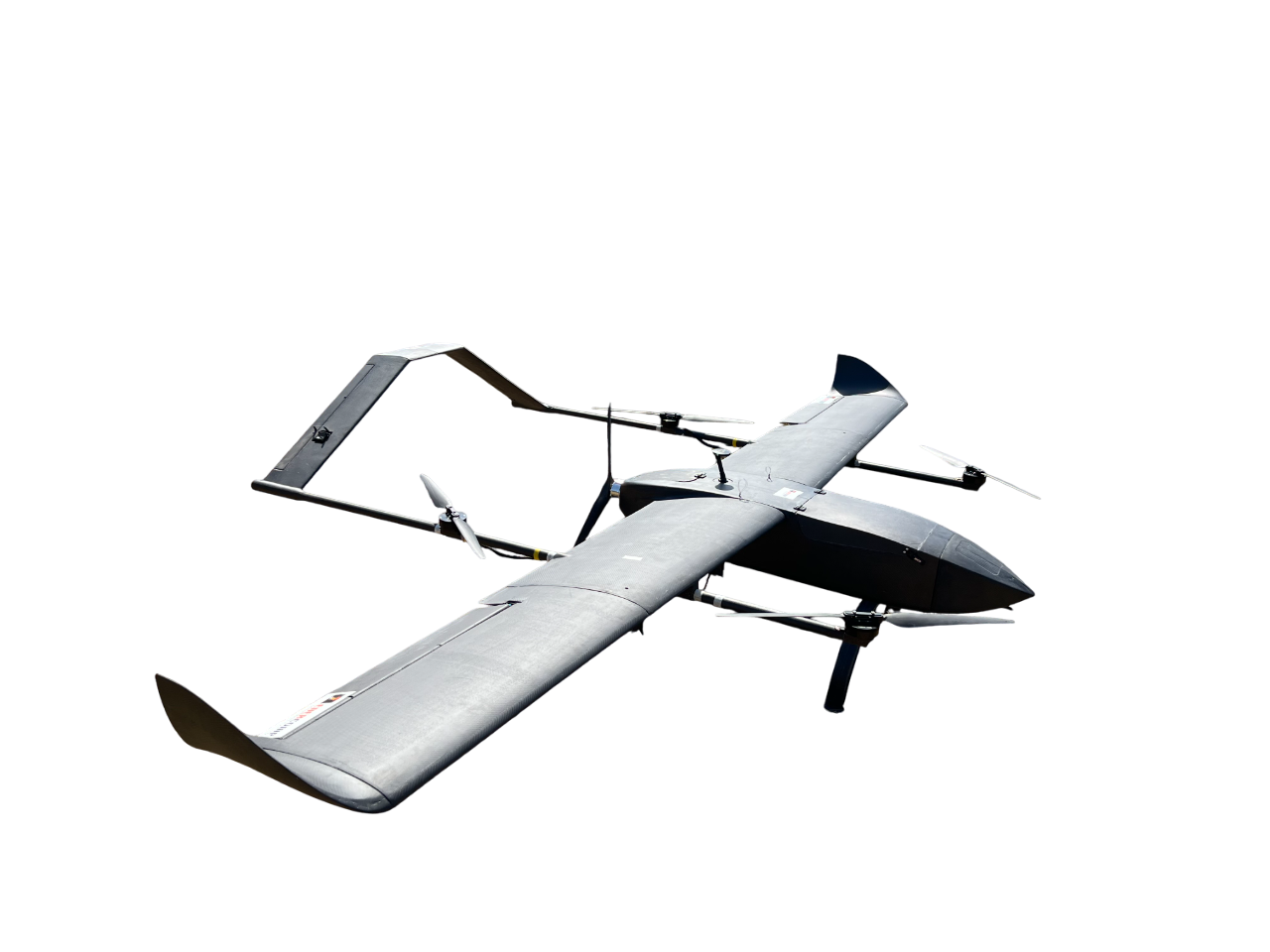

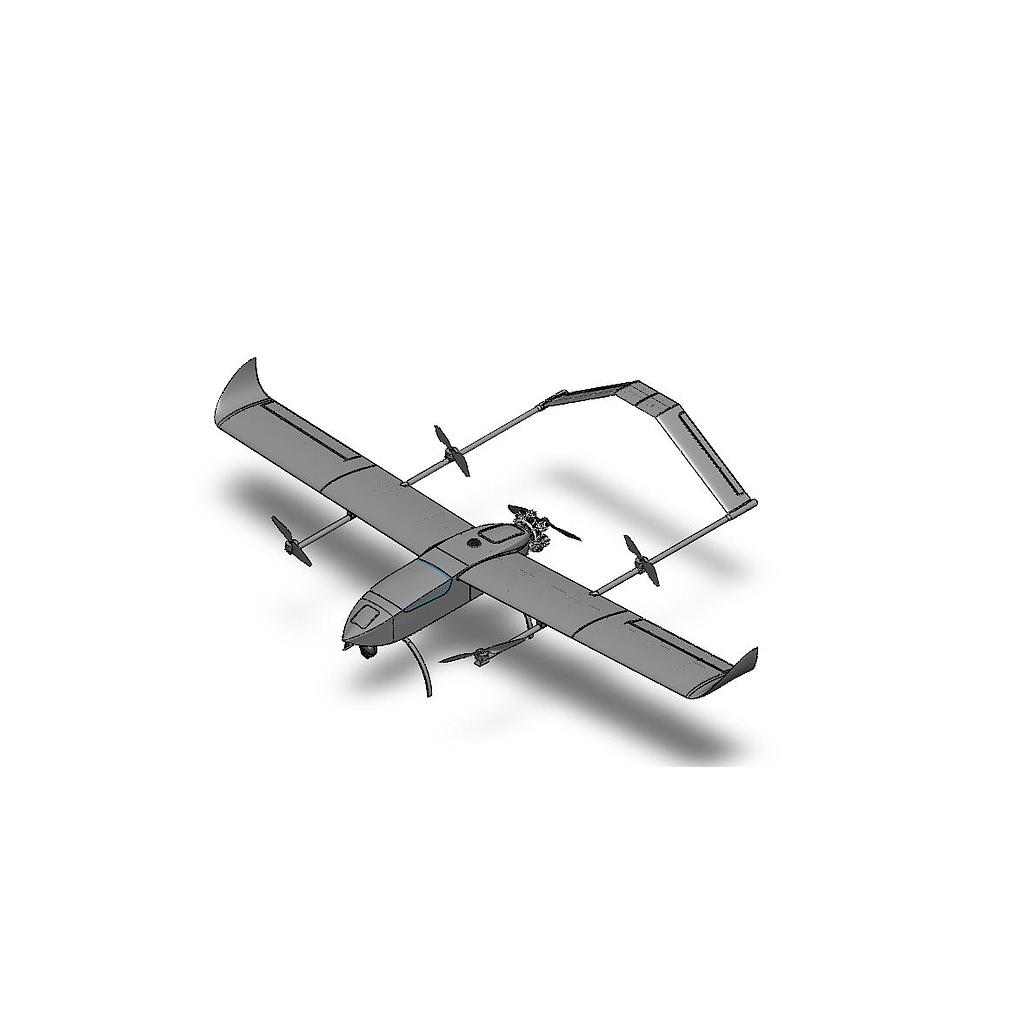

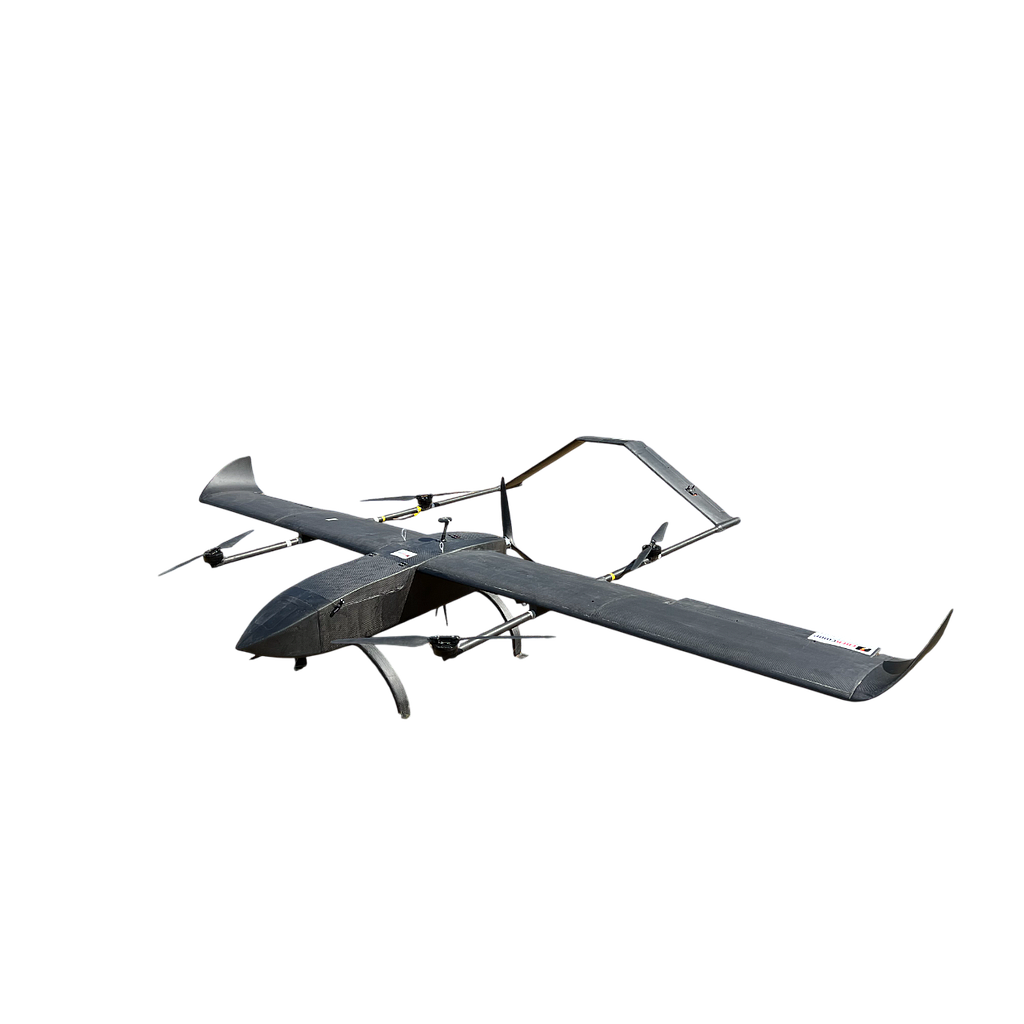

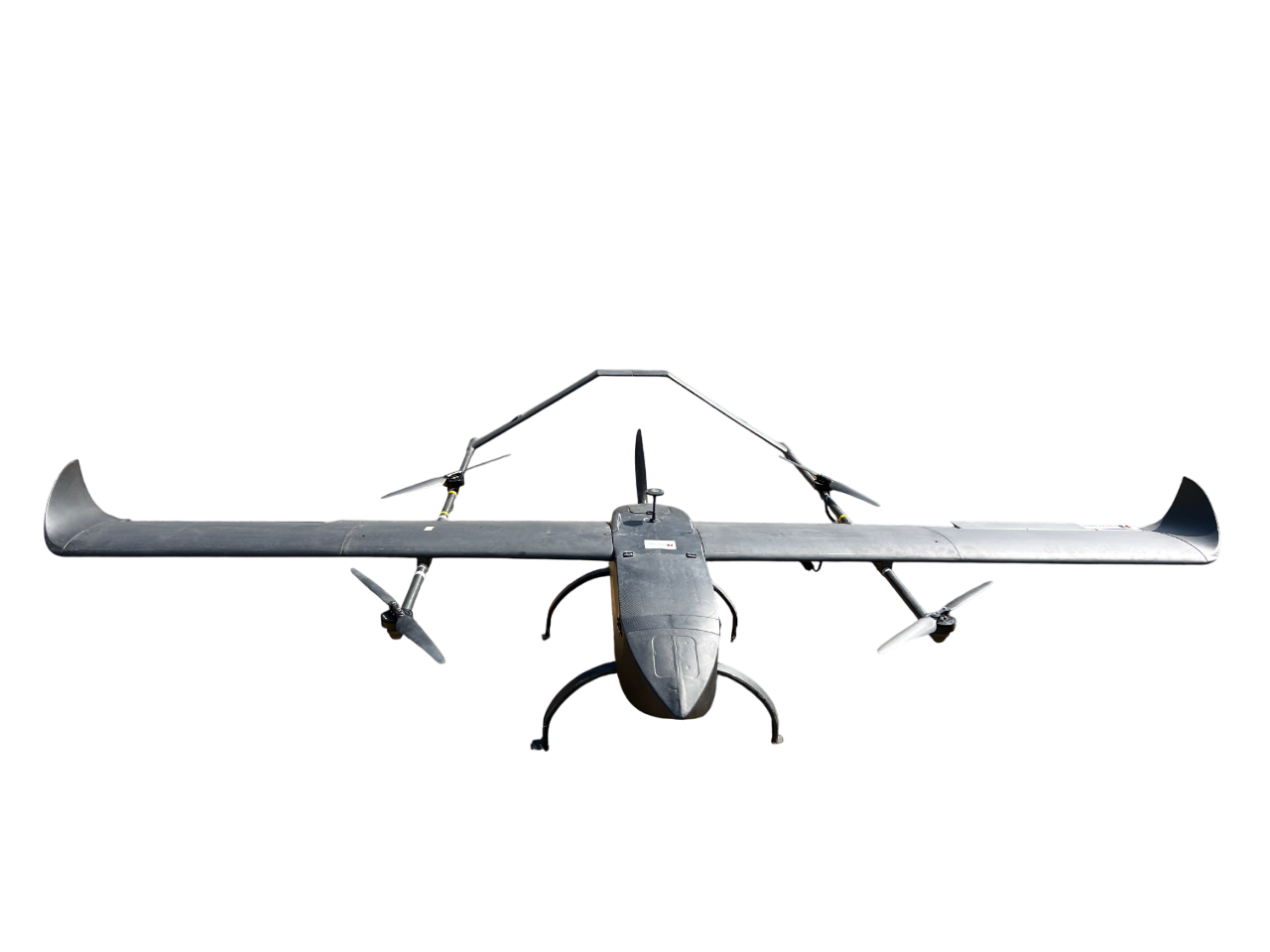

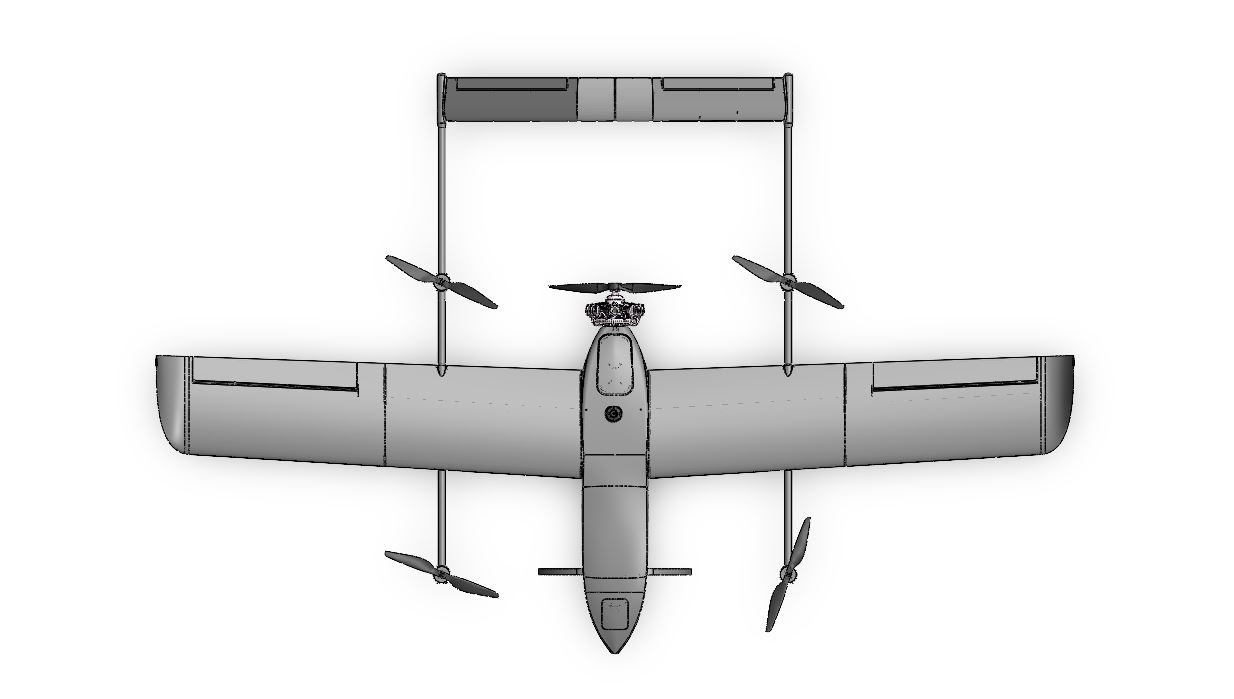

Hans VTOL Drone Kit – Modular Frame & Avionics for Custom UAV Development

The Hans VTOL Drone Kit is a robust, modular platform designed for developers, integrators, and UAV enthusiasts looking to build their own VTOL (Vertical Take-Off and Landing) aircraft. This kit provides the essential structural and electronic components — including the airframe, motors, ESCs, and basic wiring — allowing users the freedom to integrate their own flight controller, payload, and ground control system (GCS) based on mission-specific needs.

Hans KIT Includes :

1. Drone Body:
Material :- Carbon Fiber composite
Wing Span :- 4210 mm
Fuselage Height :- 905 mm
Fuselage Length :- 2650 mm
Design Altitude :- 200 m AGL & 5000 m AMSL

2. Built-in servos seamlessly integrated into the Wings and Tail section of HANS (Vertical Takeoff and Landing) model.
3. Inverted V-tail configuration with easy assembly.
4. Propellers: The rotating blades responsible for generating lift and propulsion.
{4x - Pairs of CF 30x11 VTOL Propellers 1x - 29x12 tri-blade back propeller}
5. 1x Made in India back Motor.
6. 2x CW Made in India VTOL Motor (stator 8015 12S)
7. 2x CCW Made in India VTOL Motor (stator 8015 12S)
8. 5x Made in India ESC -80A D shot Pro with telemetry.
9. Landing Gear : Sturdy legs or skids that provide stability during takeoff and landing.
10. Easy to assemble and disassemble.
11. Basic Power & Signal Wiring : Ready-to-connect layout for smooth integration with avionics and flight controller of your choice.
12. Mounting Provisions: Designed to accommodate a variety of autopilot systems, GPS modules, and payloads.

HANS :

Delivery Time: 2-3 weeks
