KINGFISHER V1

Kingfisher V1 is a DGCA type-certified professional quadcopter developed and manufactured in India for survey,PPK mapping and  \surveillance applications. It features industrial -grade motors with a special side-hole design for efficient cooling, along with waterproof and sand-resistant properties, making it highly suitable for rugged environments.

DGCA Type-Certified Professional Quadcopter

Survey • PPK Mapping • Surveillance


Customers
Download Datasheet



4.5Kg
All-Up Weight



27.43 Minutes
 Certified Endurance



808m
 Certified Operational Radius

15m/sec

Max Speed

120 meters

Operating Altitude (AGL)

500gm

Payload capacity

Choose your configuration

survey
Surveillance

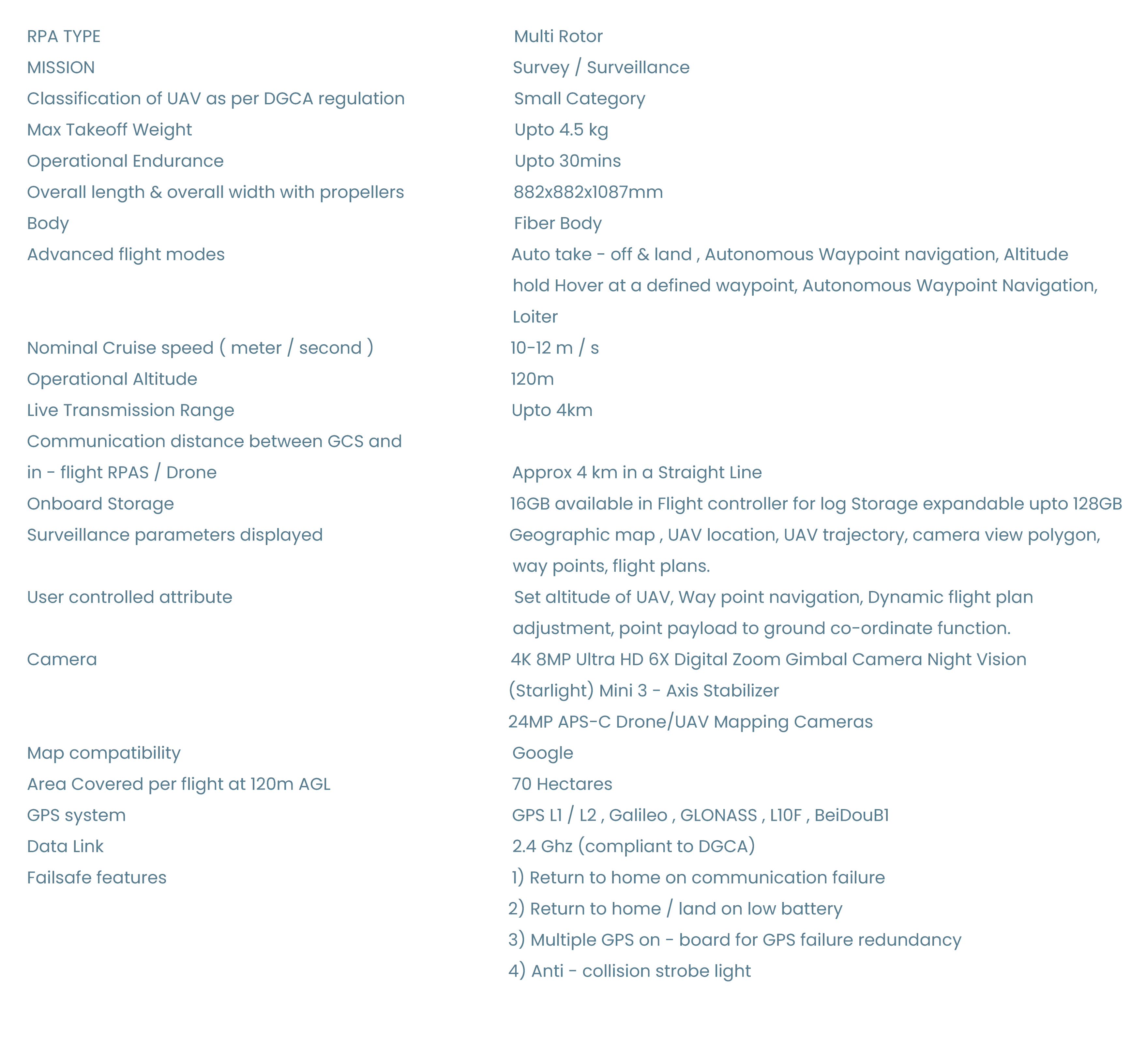

TECHNICAL SPECIFICATION


Parameter

Aircraft type

MTOW

payload

Endurance

Maximum speed

Operating Temperature

RF Band

Operational  Altitude

Data-Link Range

Manuals/ Manuals

User Guide / Self-Explanatory Booklet

Kingfisher v1

Quadcopter

4.5kg

500 g

27.43 min

15 m/s

-10°C to +50°C

5.745-5.825 GHz

120 m AGL

up to 10km

  1. Manufacturer’s Operating Manual → UAS Flight Manual,          Kingfisher V1, Ver. V1.6, 24 May 2024
2. Manufacturer’s Maintenance Guidelines → UAS                        Maintenance Manual, Kingfisher V1, Ver. V1.5, 24 May 2024
3. Maintenance Inspection/Overhaul Interval → UAS     Maintenance Manual, Kingfisher V1, Ver. V1.5, 24 May 2024
4. Maintenance Log Book → UAS Maintenance Logs, Kingfisher     V1, Ver. V1.0, 13 Sep 2023
5. Flight Log Book → UAS Operation Logs, Kingfisher V1, Ver.     V1.0, 13 Sep 2023

User Guide for End Users → UAS Flight Manual, Kingfisher V1, Ver. V1.6, 24 May 2024

Environmental and  Qualification Testing

IP53

Environmental Protection

Damp Heat

Tested

Dry Heat

Tested

 Cold

Tested

 Mechanical Shock

Tested

  Radiated Immunity

Tested

Propulsion and battery information

T motor U5

Motor

Emax Bullet

ESC

15x5.5 in

Propellers

21.6v

Nominal Voltage

40min

Charging time

1000

Battery Cycles

Indigenous Technology

Kingfisher v1

Airframe

Flight Controller

Pixhawk Cube Orange plus

ESC

EMAX Bullet series 35A BLHeli_S, 3-6S,4

inch : 15x5.5

RotationType:  2CW+2CCW

Propellers


3+ GNSS

GNSS

Telemetry

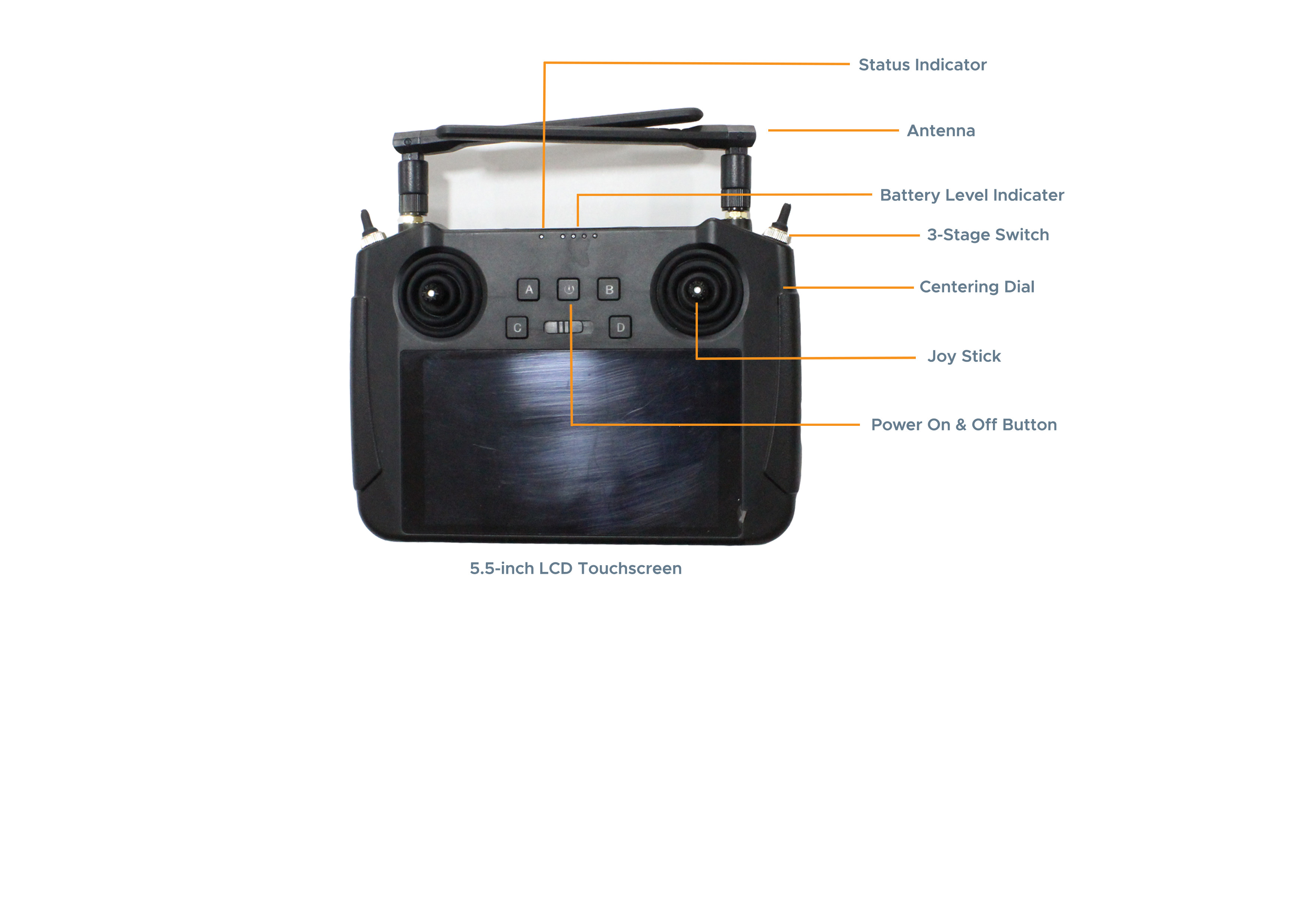

SIYI  MK15 Mini HD smart controller with MK15 Air Unit

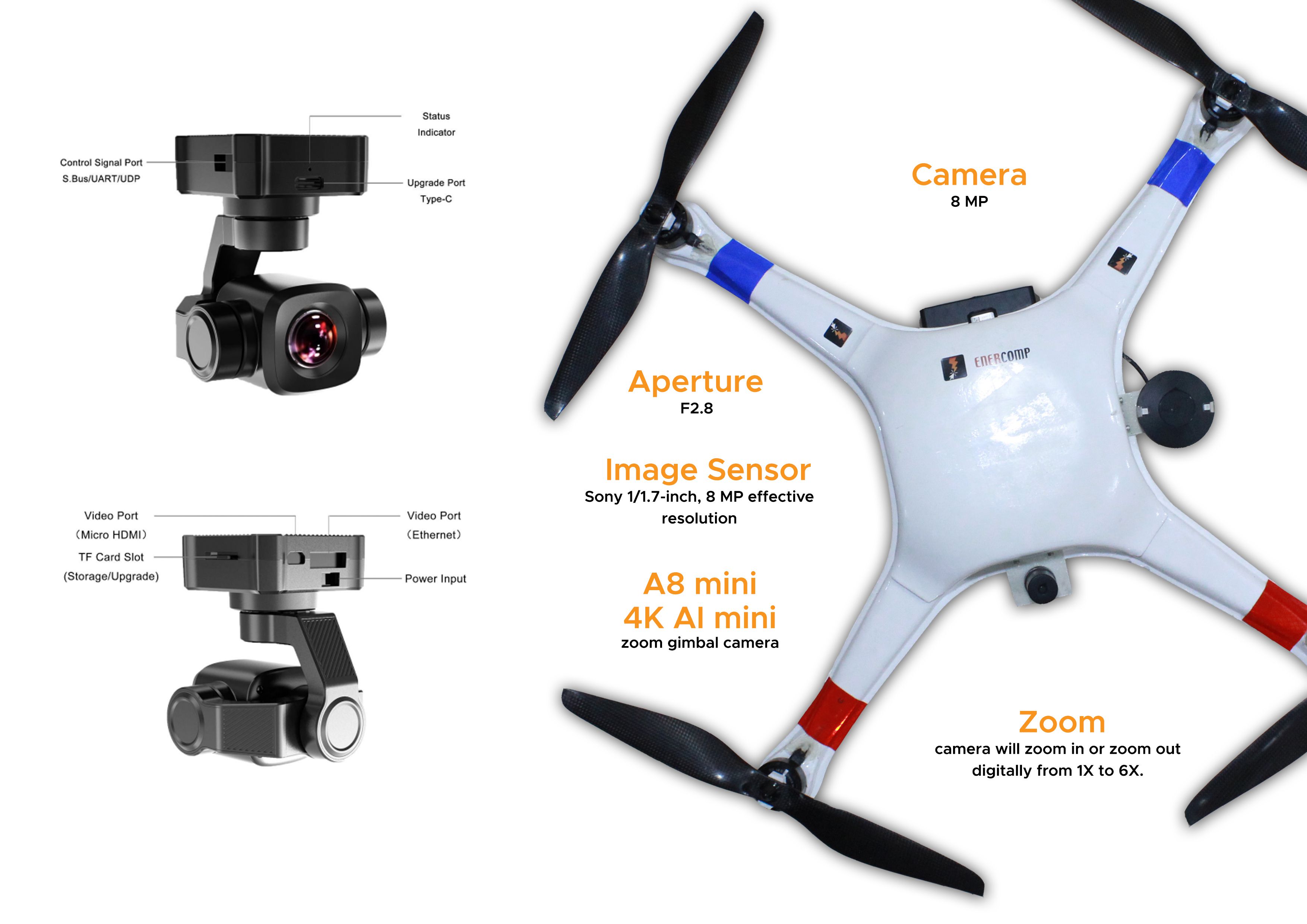

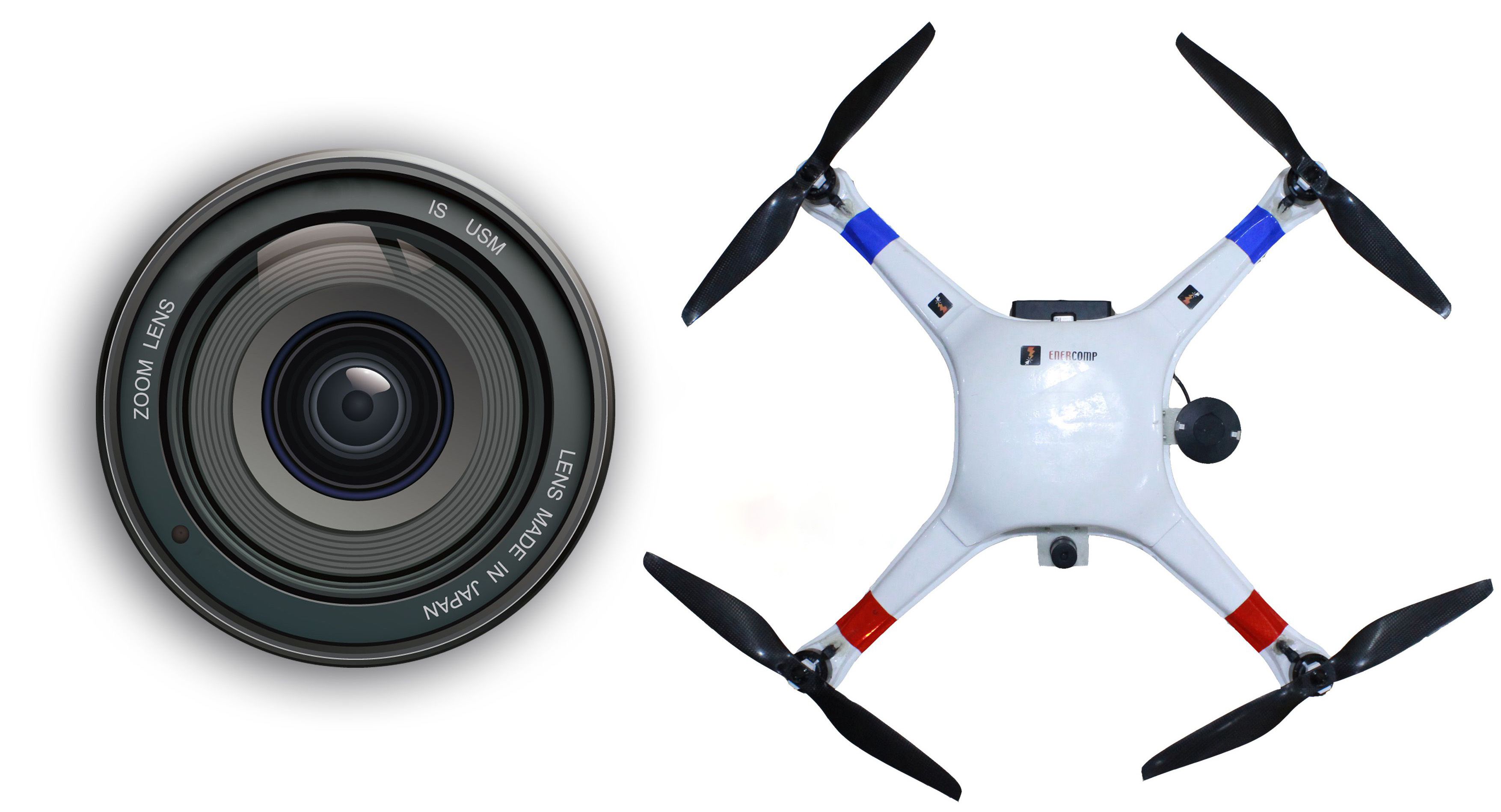

Surveillance Mode

Customers


Camera
8 MP


Aperture
F2.8


Image Sensor

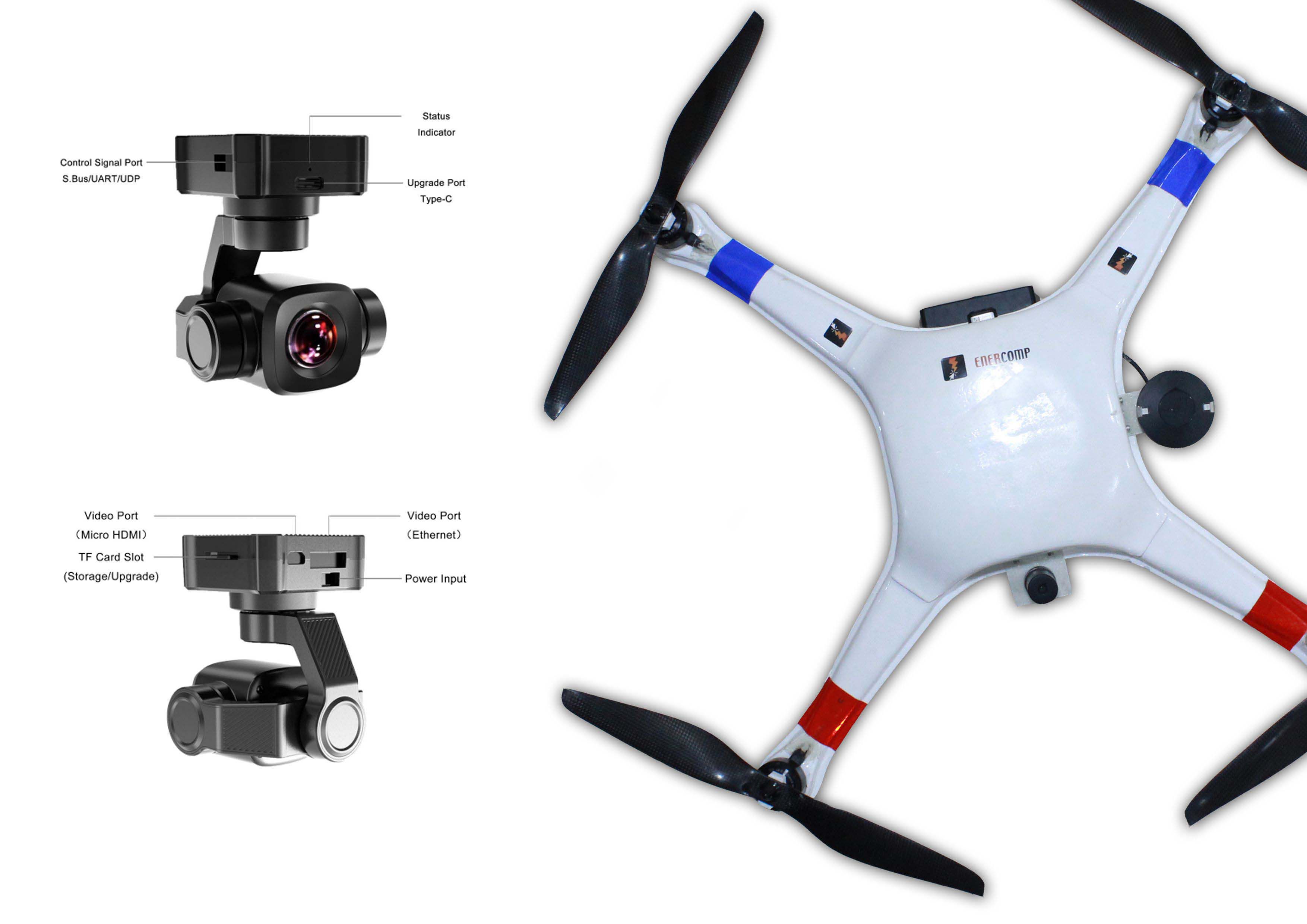

SIYI A8 Mini surveillance camera with gimbal


Zoom
camera will zoom in or zoom out digitally from 1X to 6X.

Flight Safety



Return to home

Automatic recovery capability

Low Battery failsafe

Configuration battery protection


Geofencing

Operational Boundary Contrrol

Flight Logging

Mission and system data recording

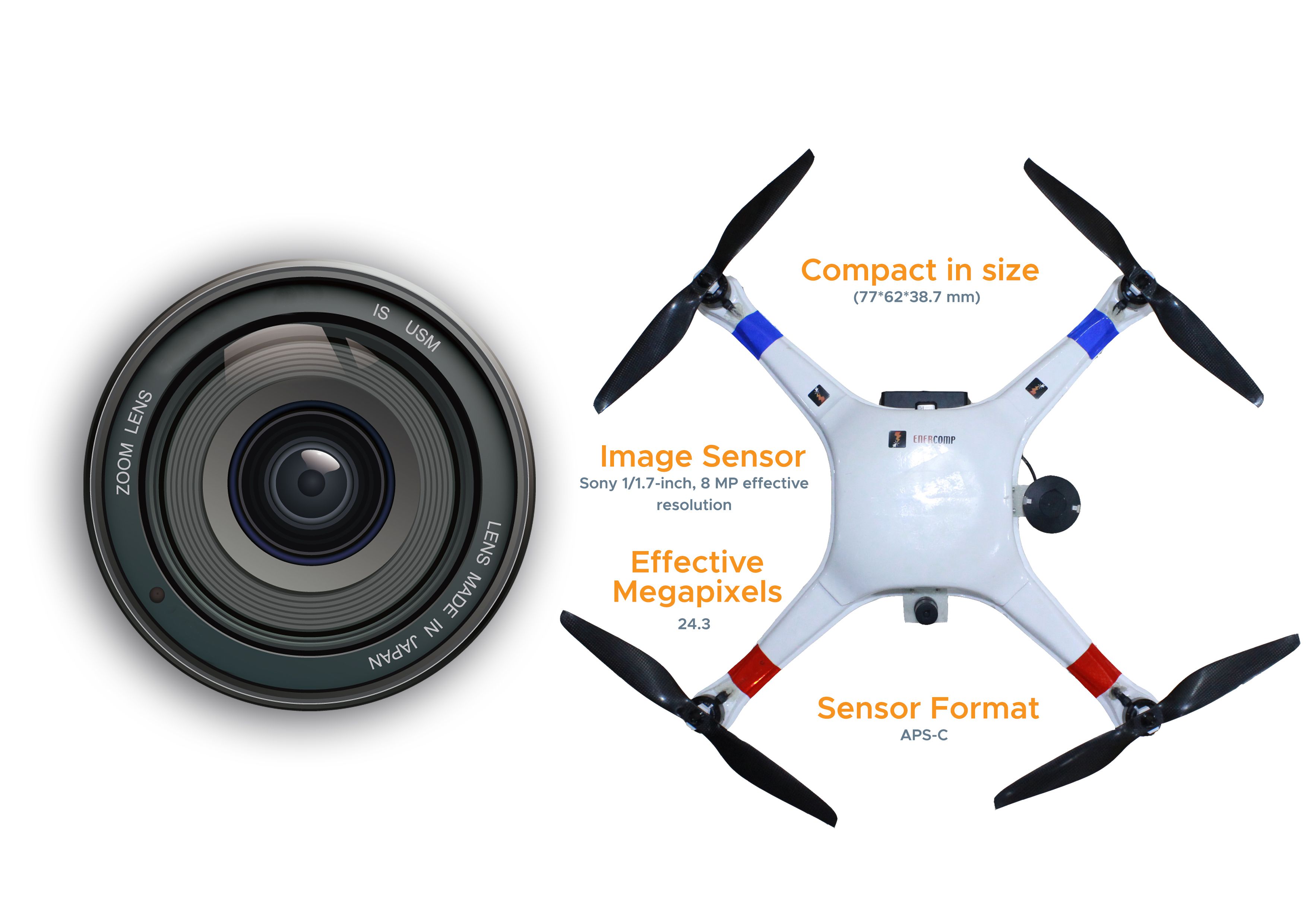

Kingfisher V1-PPK Enabled Survey
Quadcopter

Odoo CMS - a big picture


(23.5x15.6 mm)
Sensor Size


ADTi 24L Mapping Camera
Model


 Sony CMOS
Image Sensor


24.3 MP
Effective Resolution


APS-C
Sensor Format

                                 PPK Survey System



                                             🛰️GNSS Receiver - Emlid Reach M2 PPK GNSS

            📡GNSS Bands- GPS L1/L2, GLONASS L1/L2, BeiDou B1/B2, Galileo E1/E5B

                                                     📷 Camera Trigger Sync -  Yes

                                             📍Event Marking-Yes

                                             💾 Base Data Compatibility -Yes
                                             🎯Horizontal Positioning  Accuracy- 7mm + 1pp

                                             ⬆️Vertical Positioning Accuracy- 14mm + 1pp

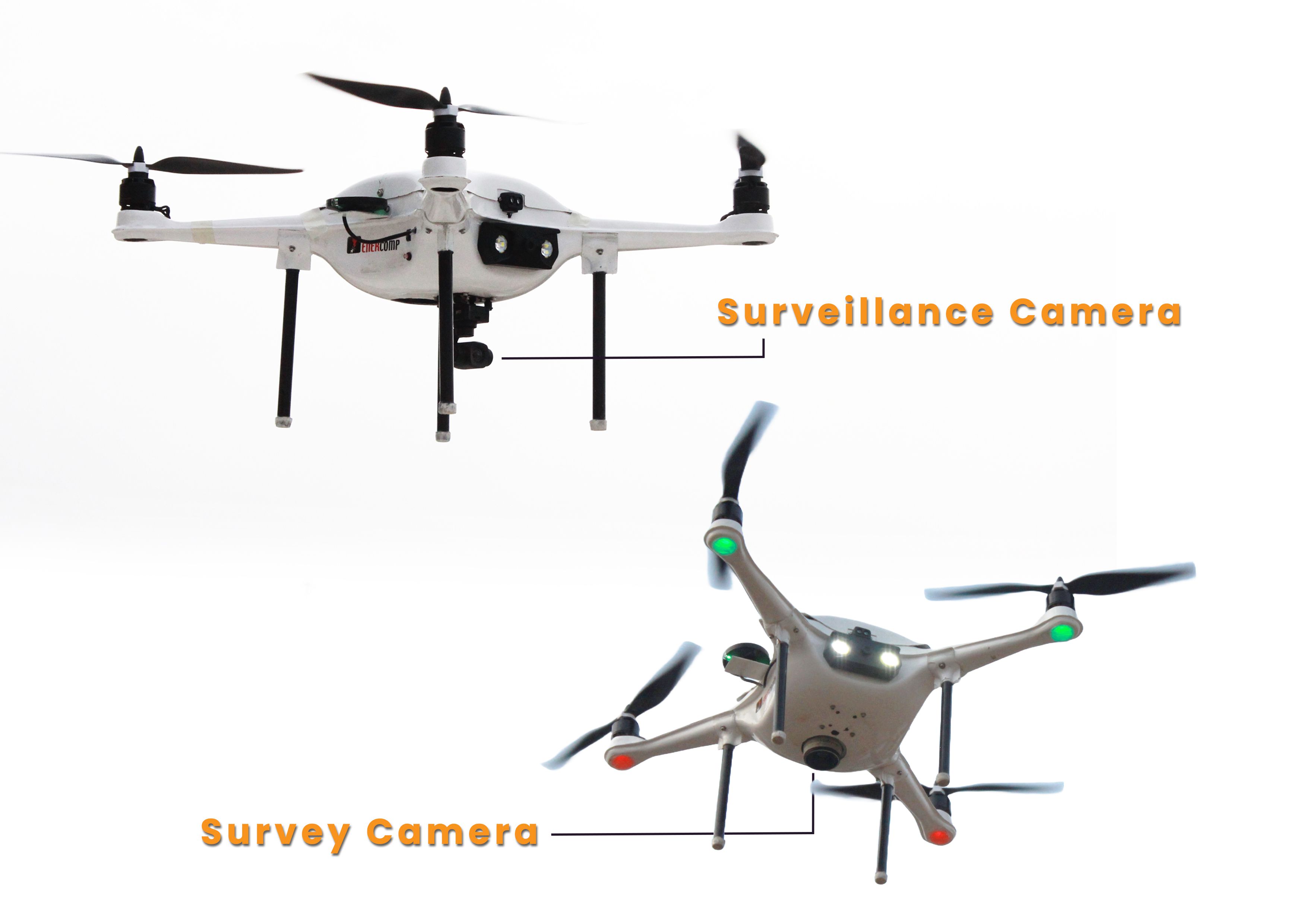

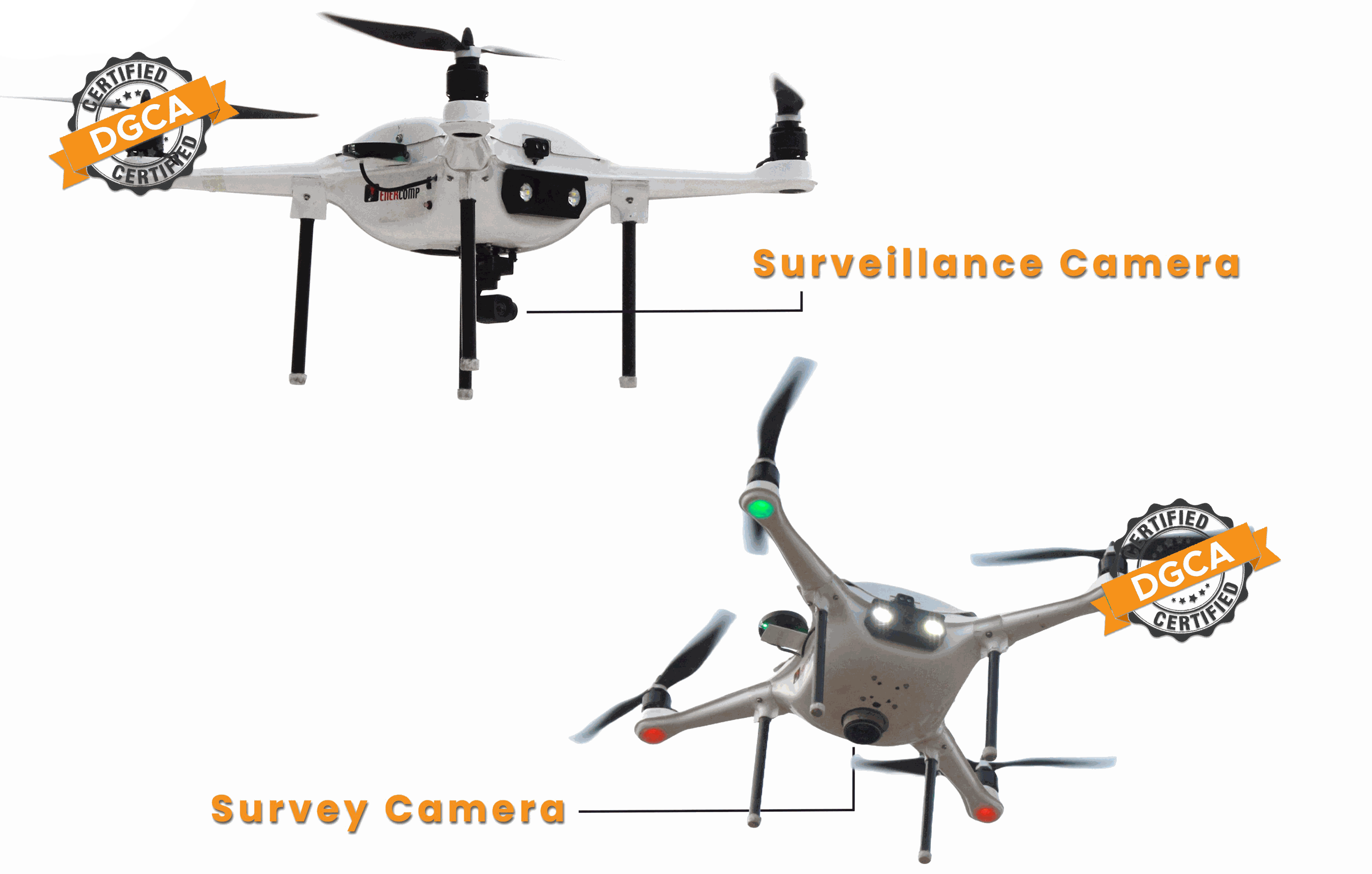

       Mission Configuration


    KINGFISHER SURVEY

 PPK Positioning


Geotagged Imagery


  Mapping/Photogrammetry


       KINGFISHER SURVEILLANCE



8 MP EO Gimbal


    Digital Zoom


  Live HD Video


Kingfisher Surveillance




Kingfisher Survey


Configure Your Mission



  Survey Configuration

PPK + mapping camera

Surveillance Configuration

EO gimbal

  Custom Configuration

Payload integration
