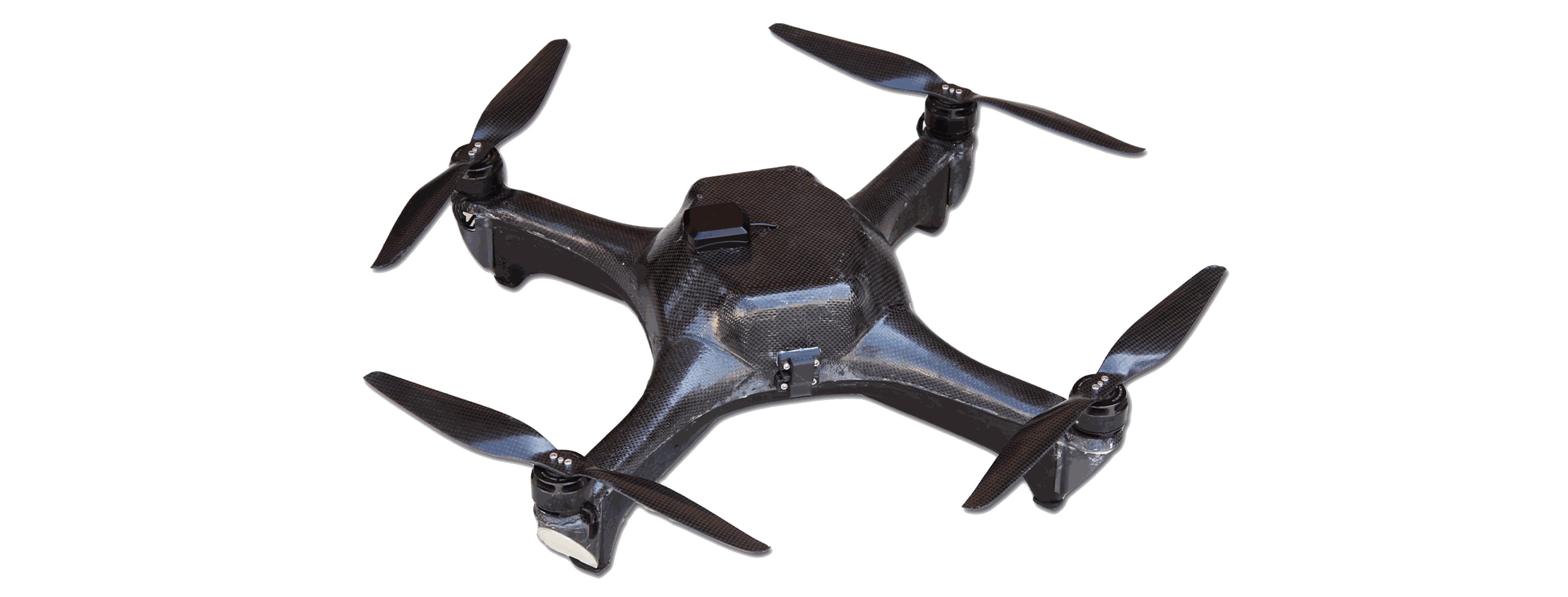

MICRO QUADCOPTER
Enercomp's Micro Quadcopter has an efficient design that enables it to be light weight without compromising structural strength. The blend of Carbon and Glass Fiber in the structure allows for having communication antennas mounted inside the body giving added protection in case of crashes. Moreover the minimalist design incorporates the landing gear as an integral part of the structure in compact form factor that enables an efficient use of volume while transportation.
Micro Quadcopter
Carbon Body has the top made of pure carbon fiber, whereas the bottom body is blend of glass fiber and carbon. The landing gear is made of glass fiber since it is radio transparent which helps in integrating the antennas within the body.
Maximum
1.850kg
All-Up Weight
150 m (AGL)
Operating Altitude
Operating Altitude
-10°C to +55°C
Operating Temperature
Operating Temperature
10 m/s
Cruise Speed
Approx
30 Minutes
Endurance
Endurance
15 km
Operational Range
Operational Range
TECHNICAL SPECIFICATION
Capacity
RPA Type
Mission
Operational Air Speed
Average x,y accuracy
Average Z accuracy
Data Link
Live Transmission Range
Area Covered per flight
Map Compatibility
Operational Endurance
Onboard Storage
GNNS System
Specification
Multi Rotor
Surveying & Mapping
10 m/s or Higher
<3cm at 120m AGL in real world condition with RTK
5cm at 120m AGL in real world condition with RTK
2.4 GHZ
Upto 3km (LOS)
at 120m AGL 70 Hectares
Upto 30 minutes
16GB available in flight controller for log storage expandable upto 128GB
Multiband L1, L2
Failsafe Features
Return to home on communication failure
Return to home/land on low battery
Multiple GPS on-board for GPS failure redundancy
High wind indication
Anti-collision strobe light
Autonomous flight termination system
