Kabootar

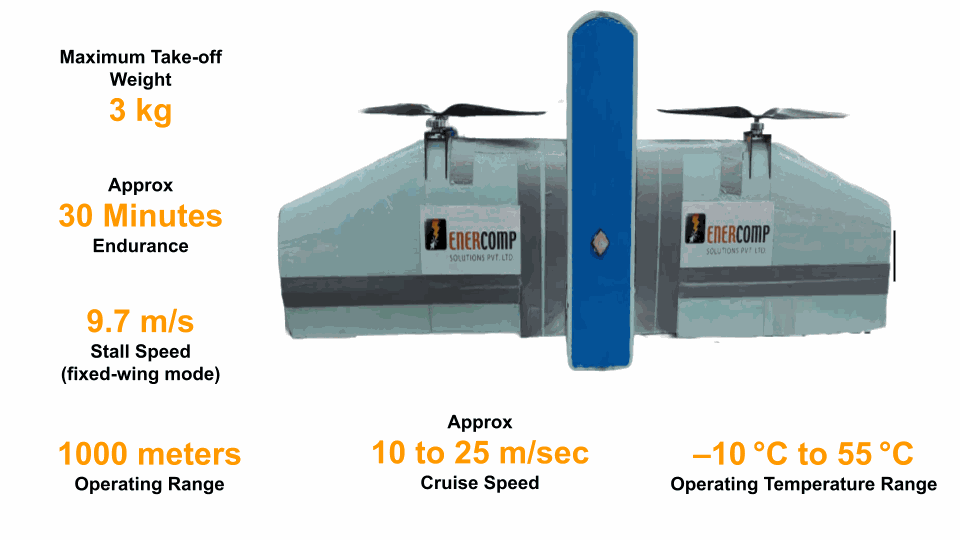

The Kabootar drone is engineered to simulate realistic aerial military targets, enhancing the training effectiveness of defence personnel. Its key features include maneuverability, expendability, and the capacity to mimic flight patterns, providing a cost-effective and safe solution for live-fire excercise.

Approx
30 minutes
Endurance
10.7 to 25 m/s
Cruise Speed
Cruise Speed
30 m/s
Max Speed
Max Speed
-10 °C to 55 °C
Temperature
Temperature
1000 meters
Operational Range
9.7 m/s
Stall Speed (fixed-wing mode)
Stall Speed (fixed-wing mode)
Approx
10 to 25 m/sec
Cruise Speed
Cruise Speed
6500 RPM
Engine Limit (motor max)
Engine Limit (motor max)
TECHNICAL SPECIFICATION
Capacity
Category
Dimensions (LxBxH)
Launch & Recovery
Operating Envelope
Payload
All Up weight
Endurance
Maximum Speed
Engine Limit
IP Rating
SSR/ADS-B Out
Use Case
Specification
Electric VTOL Tailsitter UAV
L:420mm, B:1200mm, H:100mm
VTOL (Vertical Takeoff and Landing)
VLOS (Visual Line of Sight)
Optional/Customizable (TBD)
3 kg
30 mins
30 m/s
6500 rpm (motor max.)
None (not waterproof; avoid rain/dust)
Not available
Target practice for military training (small arms, ECM, anti-drone systems)
Onboard Equipments
Capacity
Autopilot
GNSS Module
Motors
Propellers
ESCs
Battery
Navigation
Specification
Bharat FC700 with data logging
Yes
RD4006 KV390 BLDC motors or lindepro
400615 x 12E high-thrust props
Reflex Drive ESCs
Li-ion 6S1P
GPS with autonomous Return-to-Home & geofencing
