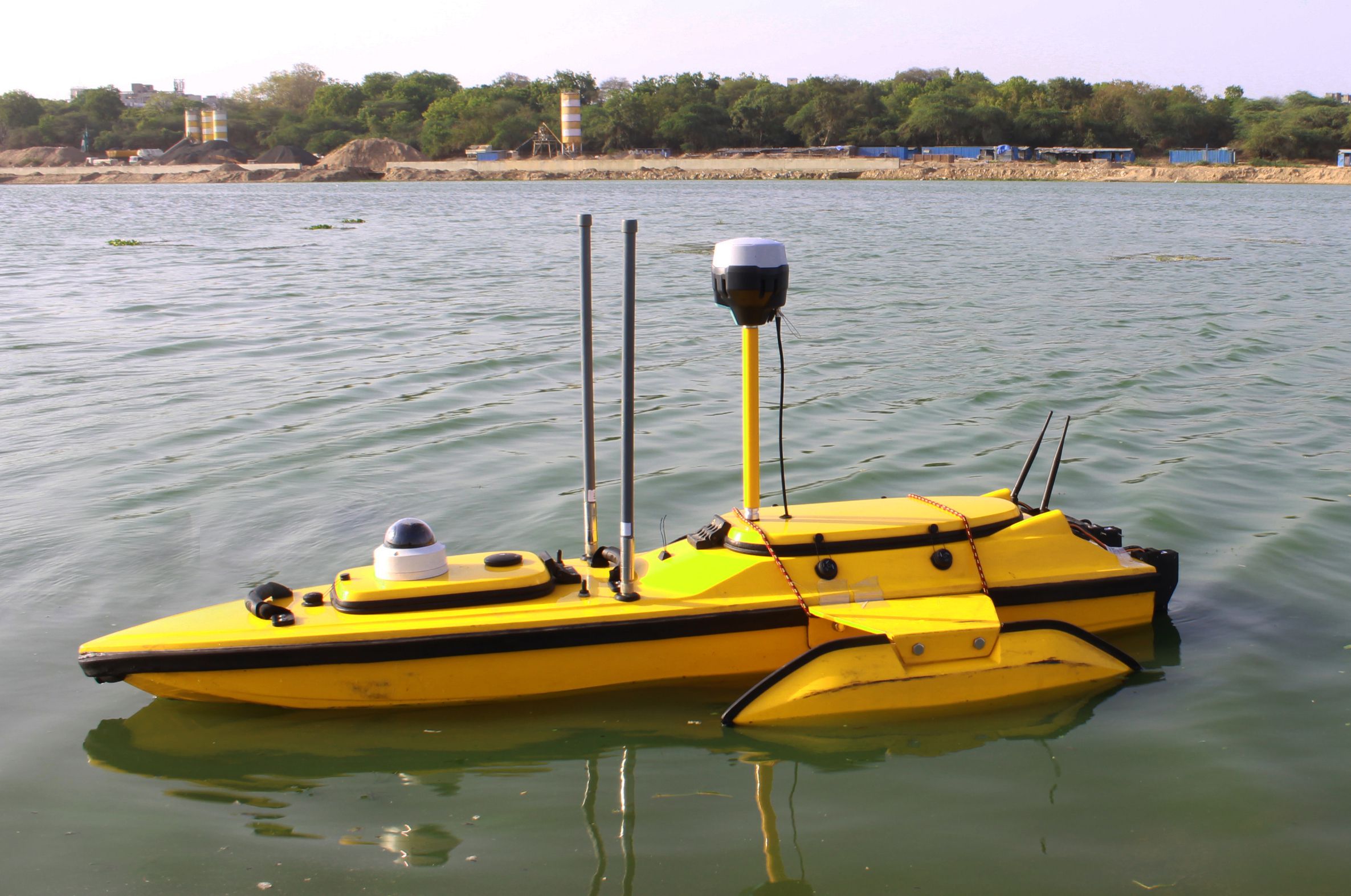

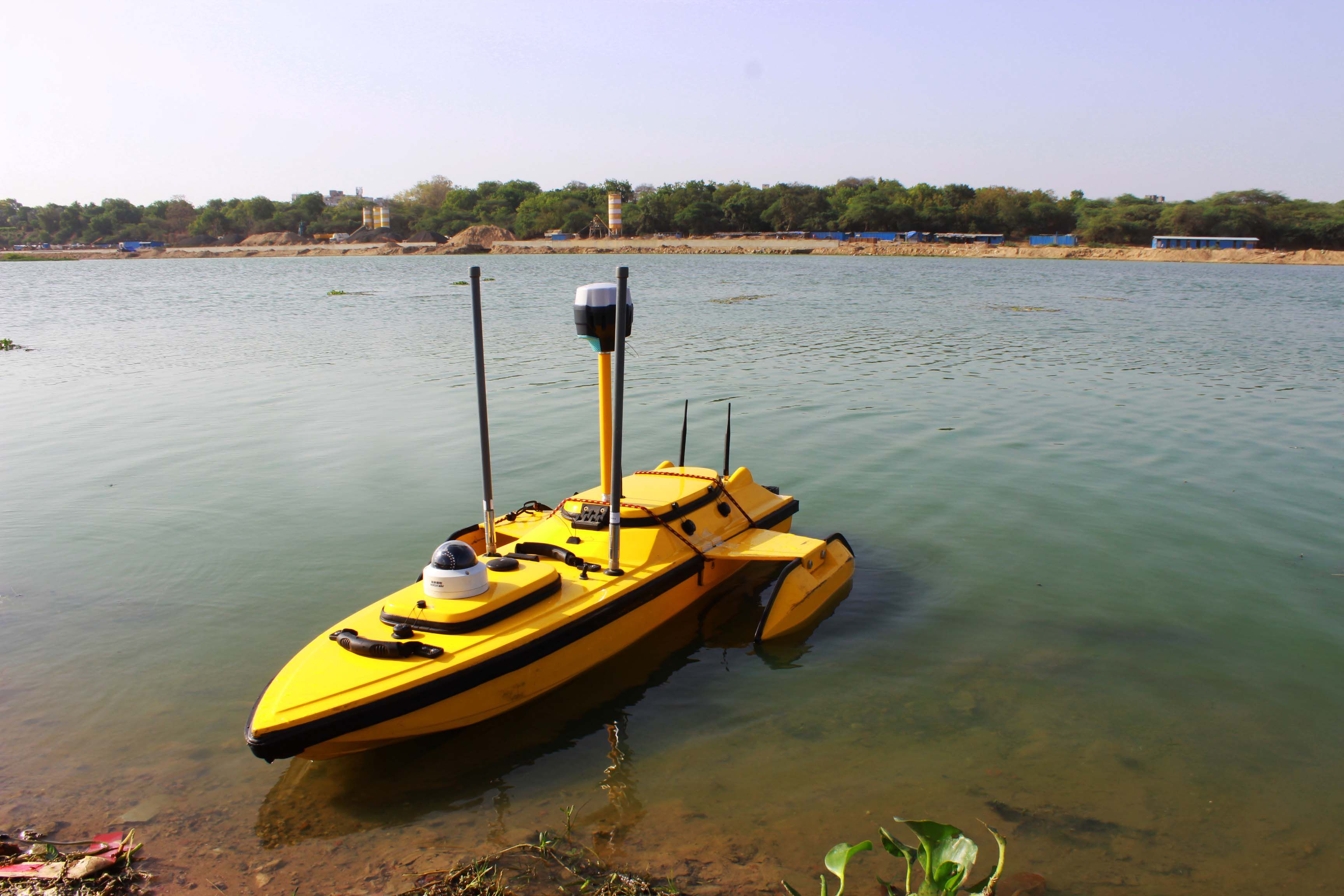

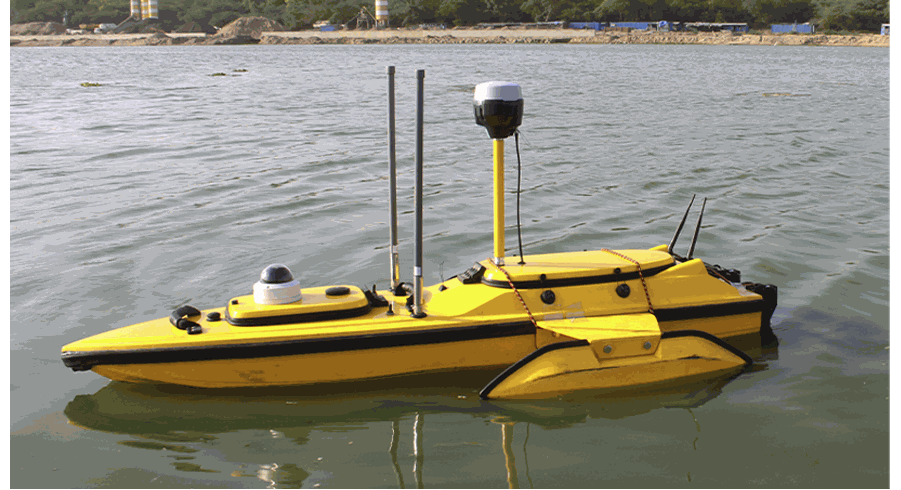

BATHYMETRY
Unmmaned Survey Vehicle
Bathymetry volutionary USV solution with integrated single or multi-beam echo sounder. It features detachable triple-hulled vessel to match various environmental constraints such as open space lake or shallow draft channel without worrying about running aground. Bathymetry is perfect solution for hydrographic surveys and mapping, channal surveys and underwater geological exploration. The system can be remote controlled or fully autonomous to greatly improve the safety of field operators. Digital radio and high resolution wireless video camera come as standard on the Bathymetry. Optional equipment such as single or multi-beam echo sounders and RTK GNSS receivers are available. Bathymetry collects and stores data from multiple sensors in real time. The triple hull anti-corrosion technology makes it suitable to all kinds of environments.
UHF, Network Bridge
Communication way
5.0GHz
UFH Frequency
UFH Frequency
2KM
Communication Distance
Communication Distance
RS232 / Internet Access
Communication Port
Communication Port
35 KG
Maximum Load
Maximum Load
-10 °C to +50 °C
Operating Temperature Range
Operating Temperature Range
TECHNICAL SPECIFICATION
Capacity
Dimensions (L x B x H)
Weight
Material
Type
Maximum Speed
Draught
Sea Condition
Wave Resistance
Specification
160cm x 38cm x 24cm
<10kg (22.0 lb)
Macromolecule Polyster Carbon Fiber
Triple-hull Vessel
5m/s
0.15m
3 level (wind resistance 9 m/s)
1.25 m
CORE TECHNOLOGY

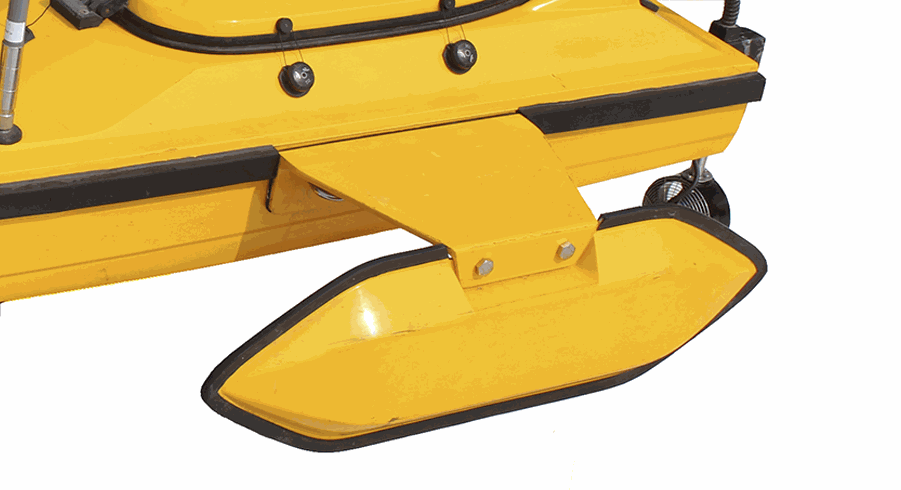

Triple-hulled Vessel design
The detachable triple-hulled vessel design is perfectly meeting various mission environments. Fitted with its dual floating bodies to keep hull balance while operation in the open lake region. The floating bodies can be removed when surveying in shillow draft lake or channel to avoid run aground.
Single Person Operation
With a weight of 10 kg (without battery and echo bounder), the APACHE 5 it can be camed by a single person during the entire project from on-site transport installation, calibration and mission processing.

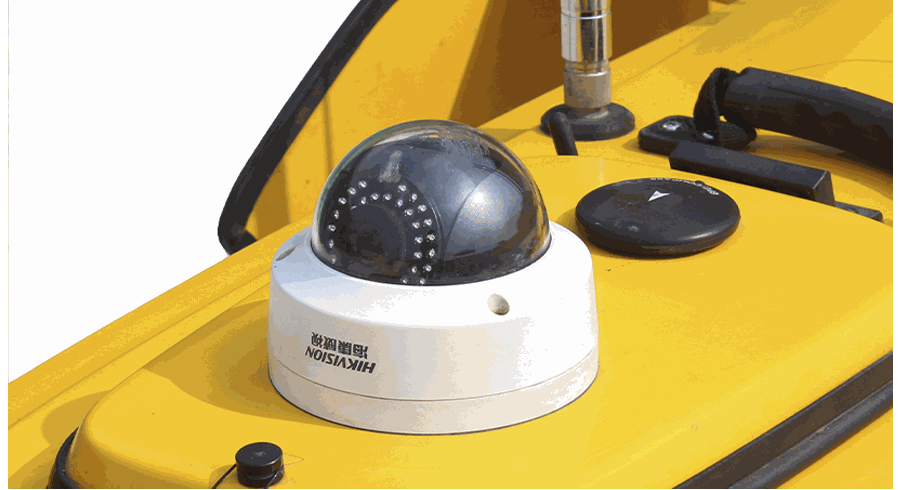

High Resolution Video Camera
This unique feature provides real-time video feedback up to 2 km when being out of line-of-sight or during fog situation. Live video feed increases mission efficiency and safety in emergency situations (riverfront survey, grounding)

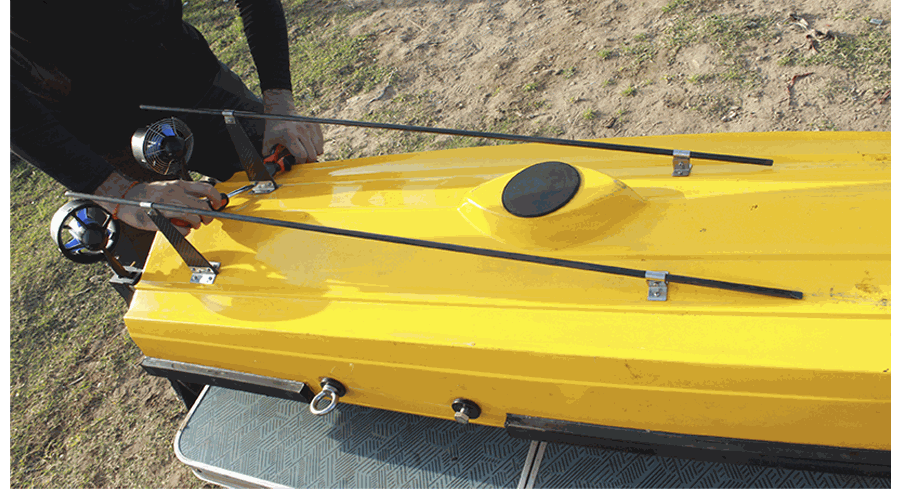

Dual Pole Protective Design
Integrates a dual tough and rigid carbon fiber pole to protect propellers to get rid of twined by aquatic plants and fishing net in riverways and shallow water
WEB VIDEO CAMERA SPECIFICATION
Capacity
Adjust Angle
Conversion Mode
Video Compression Standard
Camera
Infrared Irradiation Range
Maximum Image Size
Storage
Communication Port
Operating Temperature
Humidity <95%
Dust and water proof
Specification
Horizontal - 0 to 355
Vertical 0° to 75*
ICR infrared Filter
H.265, H.264, MJPEG
3-Megapixel
10m to 30m
2048 x 1536
Micro SD (128gb)
RJ45 10m/100m adaptive ethernet port
-30°C to +60°C
Condensation
IP 67
D230 ECHO SOUNDER (optional)
Capacity
Size
Weight
Accuracy
Measure Range
Resolution
Frequency
Sound Velocity adjust Range
Pulse Power
External Power
Draft Adjust Range
Operating Temperature
Specification
(L x W x H) 24cm x 16cm x 5cm
0.9 kg (2.0lb)
+0.02 m +0.1% x D ID is the depth of water)
0.3m to 200m
0.01m
200 KHz
0.0 m to 9.9m
300 W
10V DC to 30V DC or 100V AC to 240V AC
0.0m to 9.9m
-30°C to +60°C
BATHYMETRY MARINE CONTRUCTION
1. Triple-hull vessel
2. Lightweight contruction, less than 10kg
3. Internal high sensitivity inertial navigation system
4. Adjustable speed, up to 5 m/s
5. Counter rotating dual propellers technology
6. High flexibility for different configuration of sensors
7. Equipped with a high defination wireless video camera
