RAPTOR X8

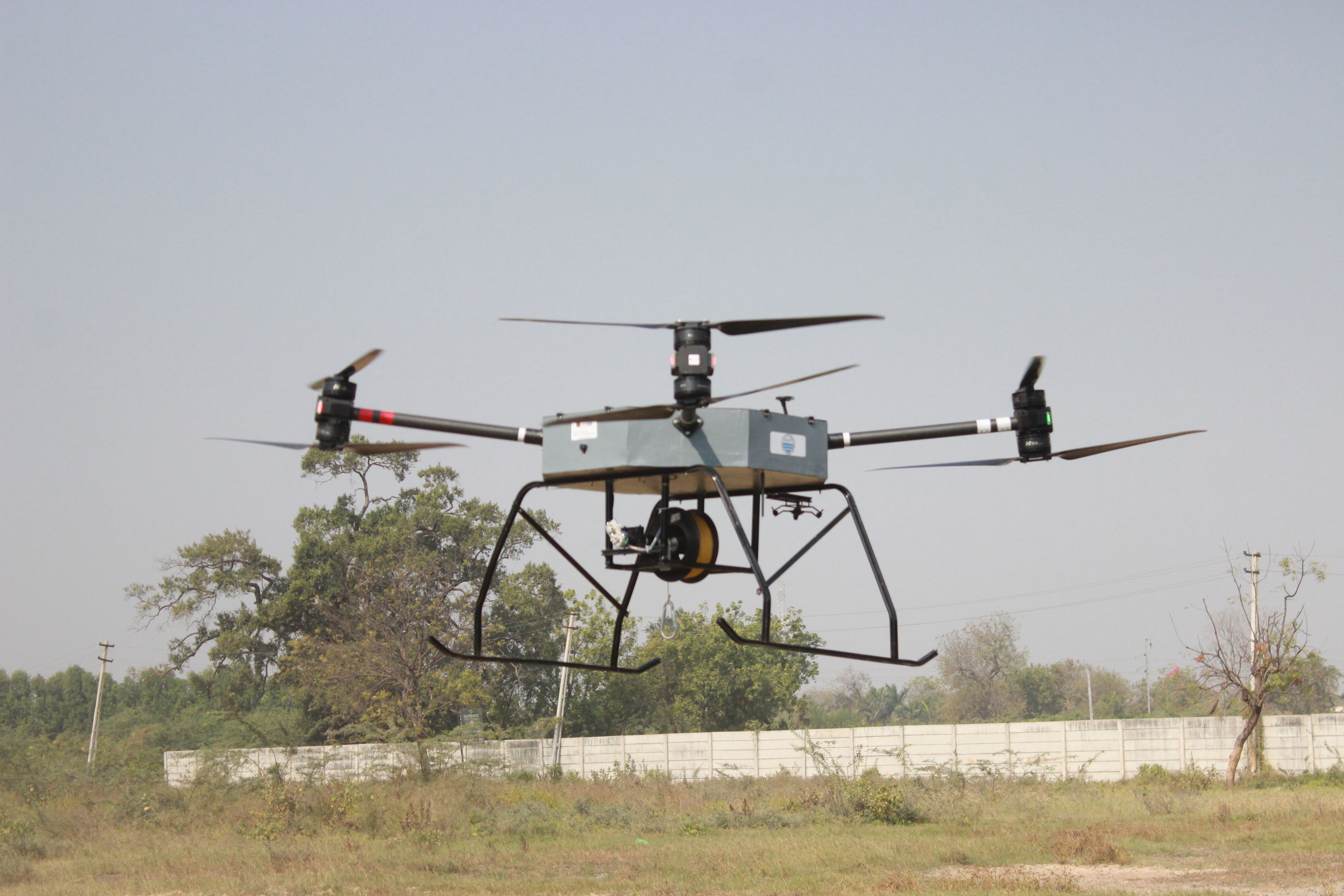

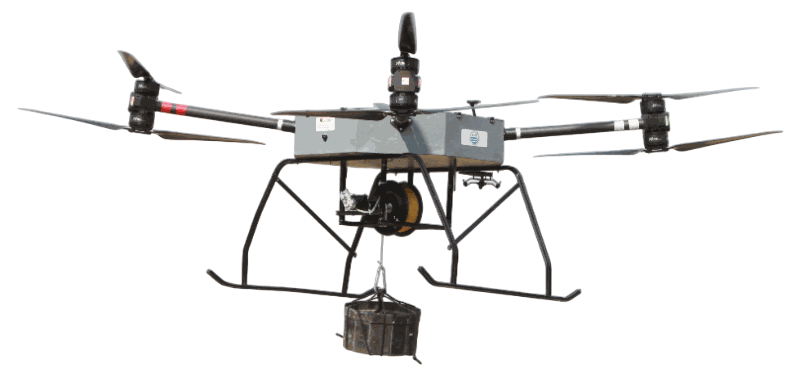

The Raptor X8 is an impressive drone designed for heavy-duty tasks, capable of carrying payloads of up to 45 kg with a flight time of 45 minutes. It excels in adverse weather conditions and high winds, making it reliable for various applications. The drone can take off from moving platforms, such as boats, enhancing its versatility. Equipped with a telephoto RGB surveillance camera and a thermal camera, the Raptor X8 is perfect for detailed monitoring and reconnaissance. Additional features like AI tracking, optical avoidance, hot battery swap, and ground radar further enhance its operational capabilities. With a standard range of 10 km that can be extended for special operations, this drone is well-suited for a variety of demanding missions.
Maximum
85 Kg
All-Up Weight
120M AGL
Operating Altitude
Operating Altitude
-10°C to +55°C
Operating Temperature
Operating Temperature
1.2
meters
Propeller details
Approx
45 Minutes
Endurance with 45 kg payload
Endurance with 45 kg payload
45KG
Payload Carrying capacity
Payload Carrying capacity
15000 meters
Operational Range
Operational Range
TECHNICAL SPECIFICATION
Capacity
RPA Type
Body Material
Dimensions (L x B x H)
Endurance with payload
Frequency Band
Operational envelope
RTK/PPK (Optional)
Operating rang
Communication range
Area required for take-off
Specification
Rotorcraft
Composite Material
L: 2960mm, B: 2960mm, H: 1030 mm
45 minutes (Payload 45 kg)
2.4 to 5.8GHz
VLOS Day or Night
Enabled
15000 meters
5000 meters (Extendable with Antenna tracker)
10 meters x 10 meters
