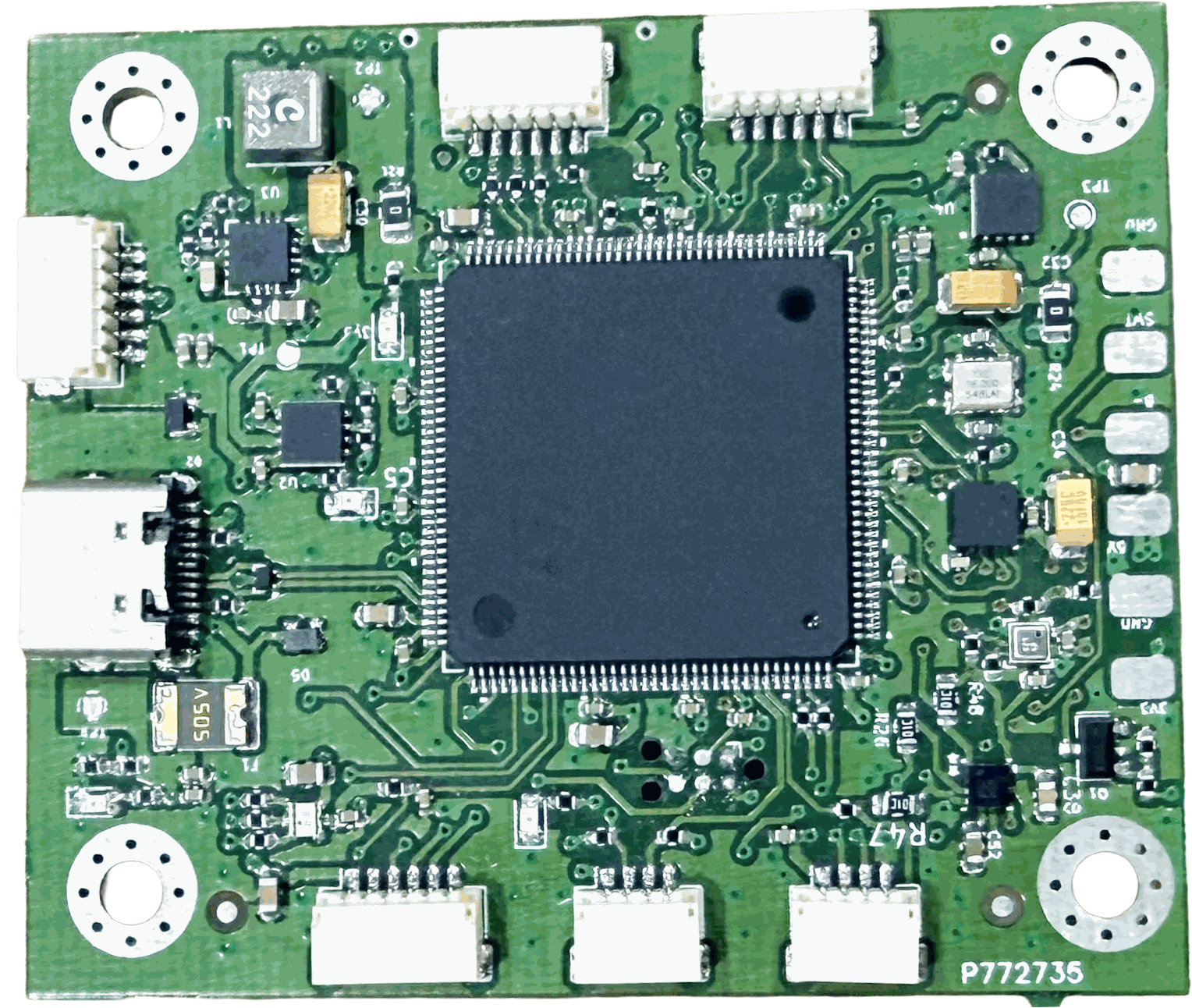

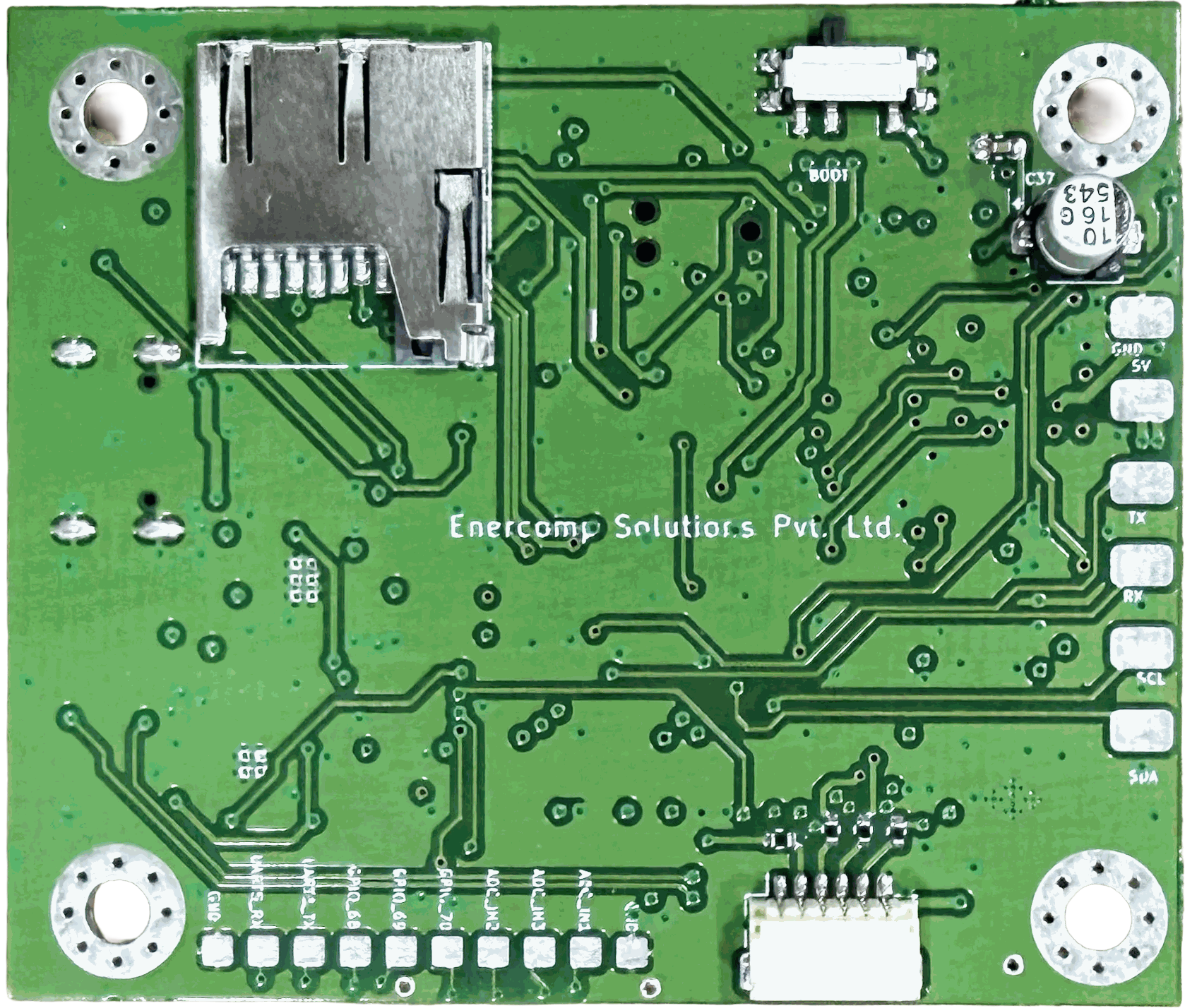

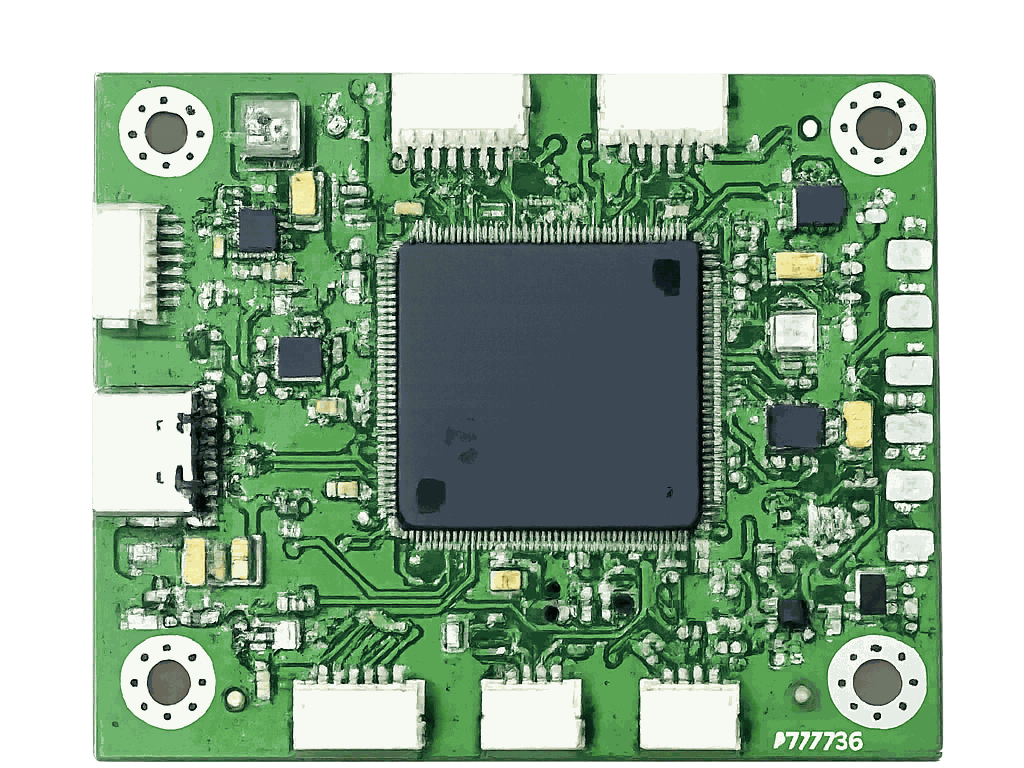

SARATHI V1
SARATHI-V1 is a next-generation flight controller engineered to deliver precision, reliability, and performance for advanced UAV systems. Featuring the powerful STM32H743 processor, industrial-grade IMU, magnetometer, and barometer, it provides accurate flight control and navigation for multirotor, VTOL, and fixed-wing platforms.
High-Speed
STM32H743
Processor
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
STM32H743 Processor
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
Output & Expansion
-
8 PWM Outputs for Motors/ESCs
-
3 × ADC Inputs
-
3 × GPIO Pins
- 8 PWM Outputs for Motors/ESCs
- 3 × ADC Inputs
- 3 × GPIO Pins
High-Speed
STM32H743
Processor
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
STM32H743 Processor
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
Output & Expansion
-
8 PWM Outputs for Motors/ESCs
-
3 × ADC Inputs
-
3 × GPIO Pins
- 8 PWM Outputs for Motors/ESCs
- 3 × ADC Inputs
- 3 × GPIO Pins
High-Speed
STM32H743
Processor
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
-
32-bit ARM Cortex-M7 Architecture
STM32H743 Processor
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
- 32-bit ARM Cortex-M7 Architecture
Output & Expansion
-
8 PWM Outputs for Motors/ESCs
-
3 × ADC Inputs
-
3 × GPIO Pins
- 8 PWM Outputs for Motors/ESCs
- 3 × ADC Inputs
- 3 × GPIO Pins
TECHNICAL SPECIFICATION
Parameter
MCU
PWM Outputs
Interfaces
Power Input
USB
Memory
Storage
Dimensions
PX4 Support
Specification
STM32H743ZI
8
2 × 12C, 5 × UART
5V
Type-C
2MB Flash, 1MB RAM
Micro SD Card
5.7 cm x 4.9 cm
Yes
