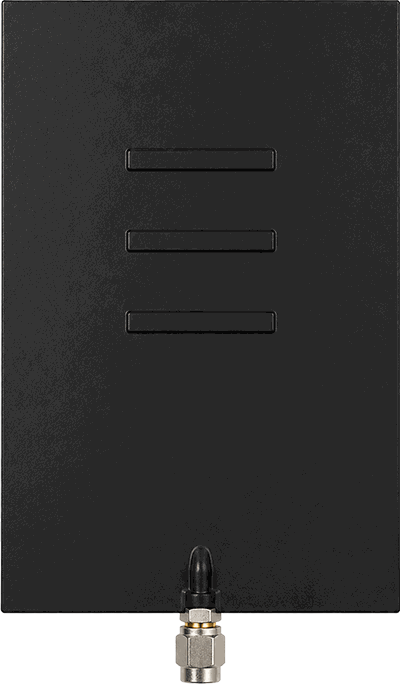

RECTANGULAR ANTENNA
Engineered for extended-range wireless communication, this printed rectangular Yagi-Uda antenna provides targeted directional gain and low signal reflection. Ideal for UAV telemetry,
Ground Control Stations (GCS), Wi-Fi extension, video transmission, and industrial
RF links operating in the 2.4 GHz band.
Delivers a strong 8.51 dBi gain across a wide 2.308 – 2.642 GHz operating range.
High Directional Gain
Excellent matching with an in-band VSWR < 1.5 and standard 50 Ω impedance.
Low Refl ection Losses
Designed for long-range UAV telemetry, GCS tracking arrays, and high-reliability industrial wireless networks.
Versatile Application
Versatile Application
TECHNICAL SPECIFICATION
Parameter
Model Name
Antenna Type
Primary Applications
Input Voltage Range
Polarization
Dimensions (L x W)
Weight
Specification
2.4 GHz Rectangular PCB Yagi Antenna
Rectangular PCB Yagi / Printed Yagi-Uda
UAV Telemetry, GCS, Video Link, Wi-Fi Industrial Wireles
16V - 60V DC
Linear
102.65 mm × 151.93 mm
52 g
