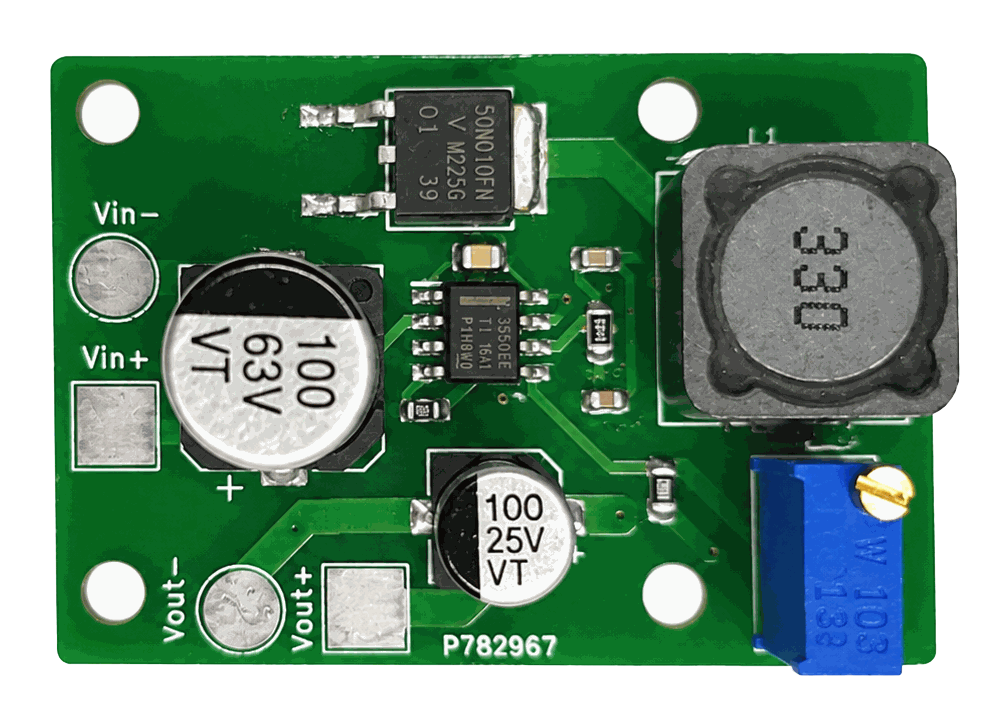

Engineered for high-voltage DC systems, this compact step-down converter delivers a reliable, constant 12V DC rail from wide input ranges. Designed for onboard electronics including Flight Controllers, GPS units, high-voltage servos, gimbals, cameras, and specialized payloads.

Customers



Compatible with 4S to 14S LiPo setups (16V - 60V DC input).
Wide Voltage Range

Continuous 12V / 3A (36W) output with 99% line regulation and minimal noise (0.50%).
Stable Power Delivery


Full onboard protection against over-current (5A threshold), over-temperature (176𝇈 C threshold), short-circuits, under-voltage, and output over-voltage.
Integrated Safeties

TECHNICAL SPECIFICATION


Parameter

Model Name

Product Type

Primary Applications

Input Voltage Range

Under-Voltage Lockout (UVLO)

Input Filtering

Output Voltage

Output Voltage Accuracy

Rated Output Power

Rated Continuous Current

Line / Load Regulation

Output Rails

Topology

Switching Frequency

Efficiency (Rated Load)

Soft-Start Time

Dimensions (L x W x H)

Weight

Specification

60V to 12V 3A DC-DC Buck Converter

Non-isolated Step-down (Buck) DC-DC Converter

Onboard power for FC, GPS, Camera, Servos, Gimbal, and Payloads

16V - 60V DC

Yes

100𝜇F, 63V

12V DC (Fixed / Variable option)

95%

36W

3A

Line: 99%

1 Rail

Asynchronous Buck

400 kHz

85%

2.1 ms

4.5 cm, 3 cm, 1 cm

13 grams
