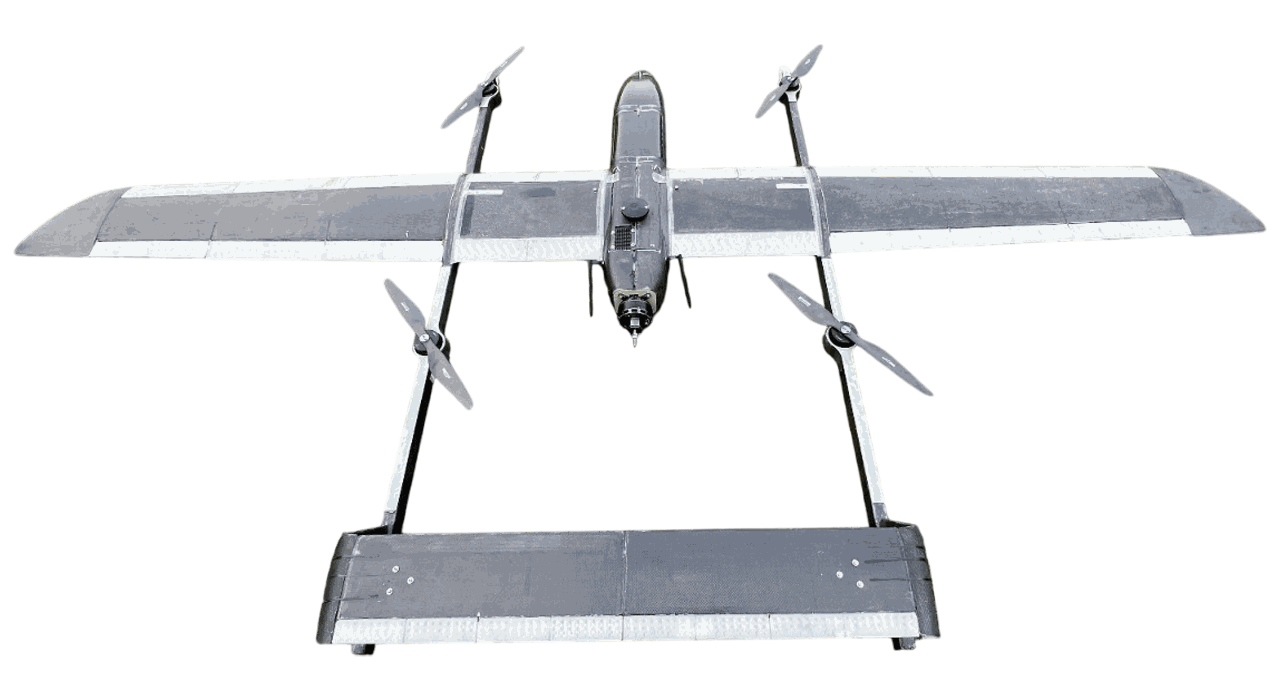

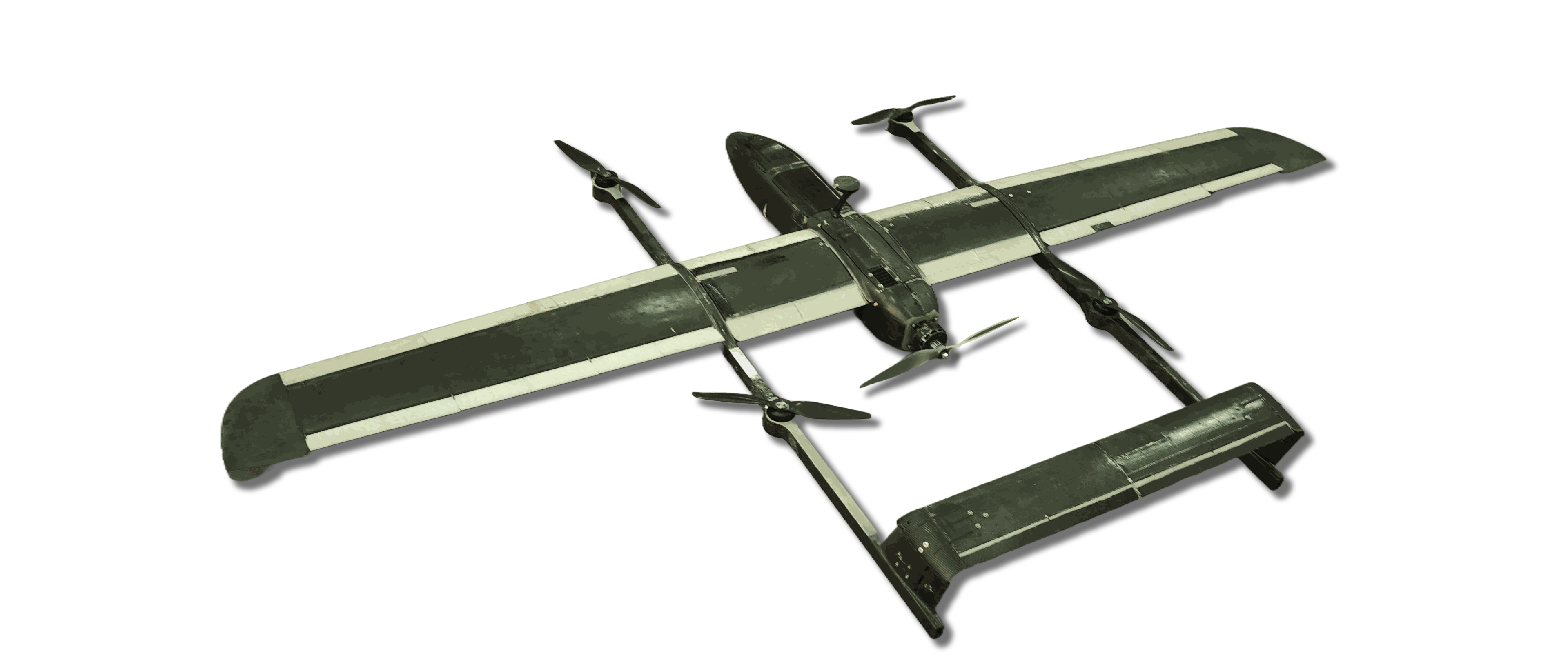

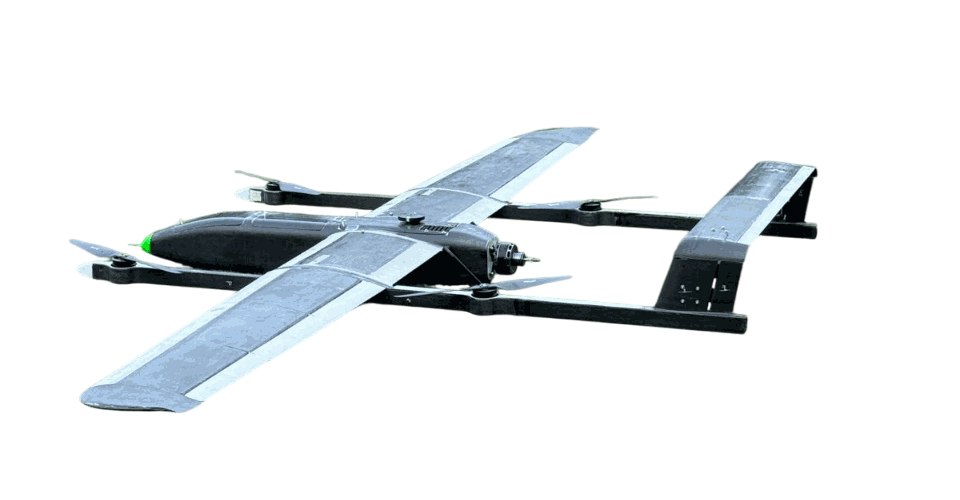

SARAS VTOL

SARAS VTOL is a next-generation, Made-in-India unmanned aerial system engineered to redefine the possibilities of modern aerial operations. It offers unmatched versatility by seamlessly combining the efficiency of a hybrid fixed-wing platform with the agility of vertical take off and landing. Whether it's real-time surveillance, high-endurance missions, precision mapping, or strategic logistics, SARAS is built to perform in the most demanding conditions —from high-altitude frontiers to challenging and complex terrains.

Odoo CMS - a big picture

Technical Specification



RPA Type

Body Material

Dimensions (LxBxH)

Frequency Band

Maximum Ceiling Height

Cruising Speed Range

Operational Range

Indigenous Content

Payload

RTK/PPK (Optional)

Use Case




Hybrid Fixed wing VTOL

Carbon Composite Material

L: 1655 mm, B: 3537 mm, H: 642 mm

5.745 to 5.825 GHz

5000 meters AMSL

30 m/s to 45 m/s

20000 meters

60% Indigenous Components

Thermal, Survey, RGB, Surveillance Camera option

Enabled

Real time Surveillance, High endurance Live video transmission, 2D/3D mapping Logistics (Can carry up-to 3kg logistic payload & 2kg of sensor payload)

Odoo CMS - a big picture

Salient Features



max. All-Ip Weight

AGL Operating Altitude

Operating Temperature

Maximum Endurance

Area required for take-off




20 Kg

120 meters

-10°C to +55°C

Approx 120 Minutes

5 metre x 5 metre
