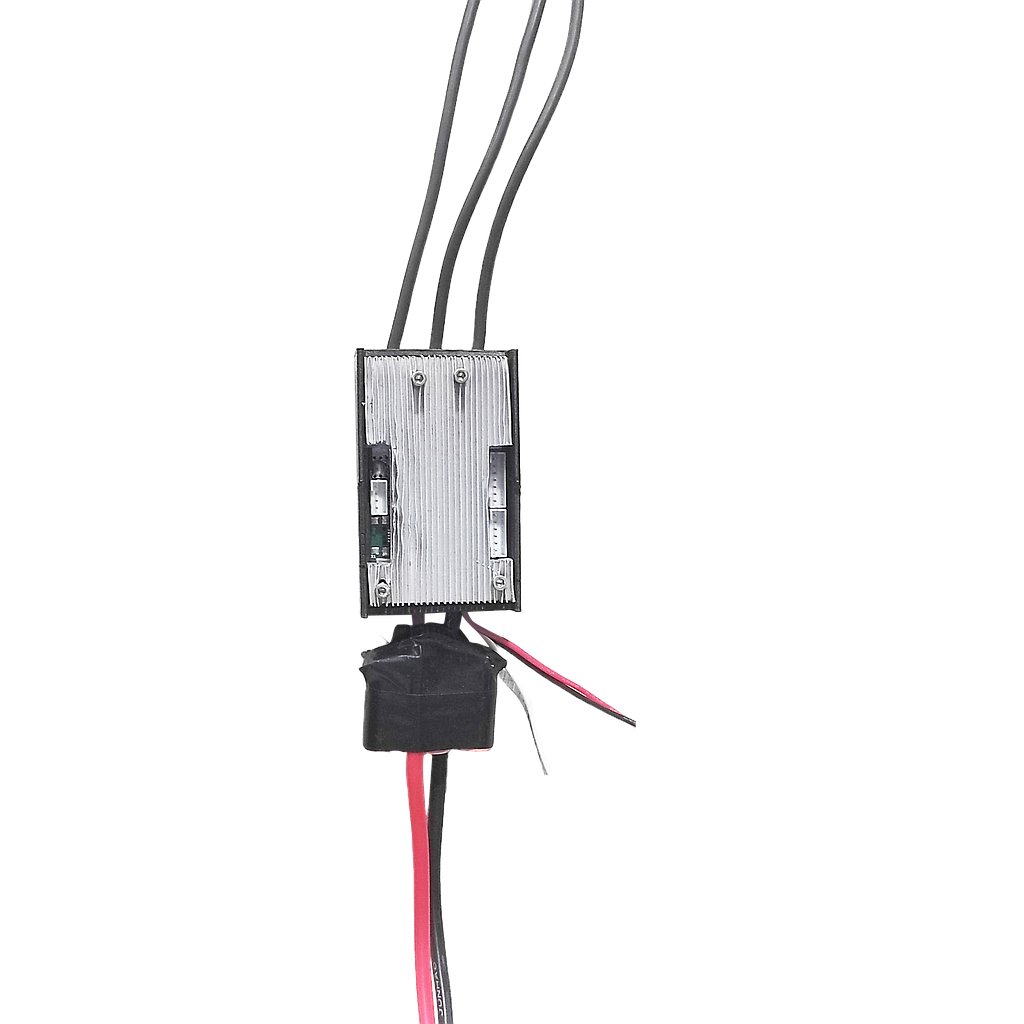

Enercomp ESC

This high-efficiency, feature-packed ESC is designed for demanding drone and robotics applications. Supporting both sensored and sensorless FOC (Field Oriented Control), it provides smooth and efficient motor performance with automatic motor parameter detection. Integrated UAVCAN telemetry, advanced safety protections, and wide voltage compatibility make it an ideal choice for modern electric propulsion systems.


Features :
1. Wide Voltage Input: 8V to 60V (Supports 3S to 12S LiPo batteries)
2. Continuous Current: 80 Amps
3. Burst Current: 240 Amps (for a few seconds)
4. Operating Mode: Standard PWM control
5. Telemetry: UAVCAN protocol support for real-time data feedback
6. Control Algorithms: Sensored & Sensorless FOC with automatic motor detection
7. Protection: Built-in low/high voltage and over-current protection
8. Thermal Safety: Optional configurable temperature-based thermal shutdown
