Hans Frame

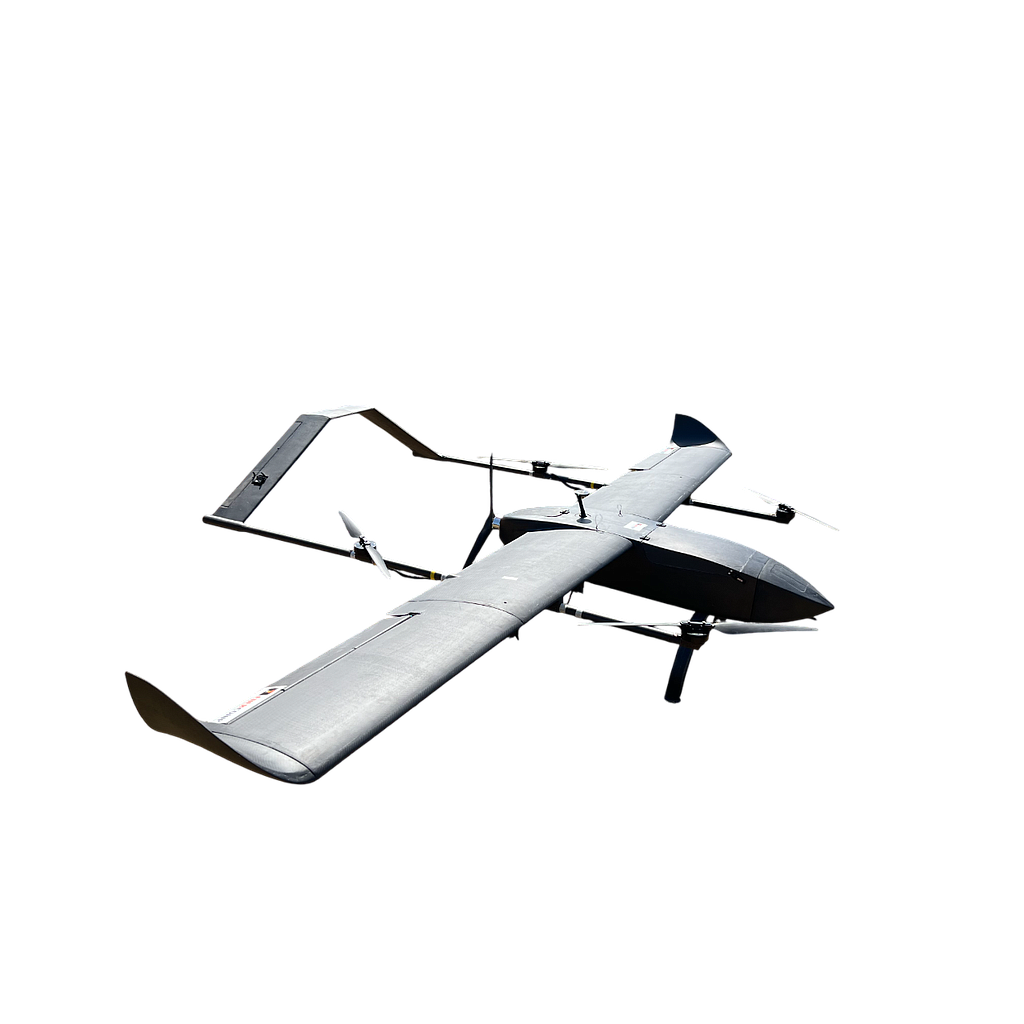

Hans VTOL Frame – Carbon Fiber Composite Airframe with Propellers

The Hans VTOL Frame is a high-performance carbon fiber airframe engineered for robust vertical take-off and landing operations. With a strong, lightweight design and aerodynamic structure, it serves as a versatile platform suitable for a wide range of UAV applications.

This frame includes precision-balanced propellers and a modular design that simplifies assembly and customization. All avionics, flight controllers, and ground control systems (GCS) can be integrated as per the customer's specific requirements, making it an ideal choice for developers, researchers, and OEMs.

Hans VTOL Frame Includes :

1. Drone Body:
Material :- Carbon Fiber composite
Wing Span :- 4210 mm
Fuselage Height :- 905 mm
Fuselage Length :- 2650 mm
Wing Area : 1.55 sq. m
Design Altitude :- 200 m AGL & 5000 m AMSL

2. Wings and Tail section with control surfaces of Hans (Vertical Takeoff and Landing) model.
3. Inverted V-tail configuration with easy assembly.
4. Landing Gear : Sturdy legs or skids that provide stability during takeoff and landing.
5. Easy to assemble and disassemble.
6. Basic Power & Signal Wiring : Ready-to-connect layout for smooth integration with avionics and flight controller of your choice.
7. Mounting Provisions: Designed to accommodate a variety of autopilot systems, GPS modules, and payloads.

HANS :

Delivery Time: 2-3 weeks
