HANS VTOL

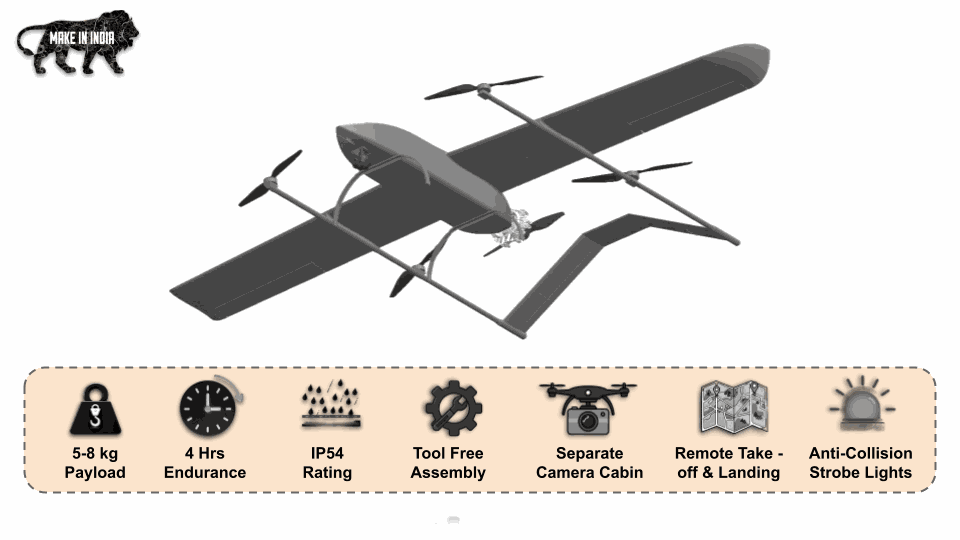

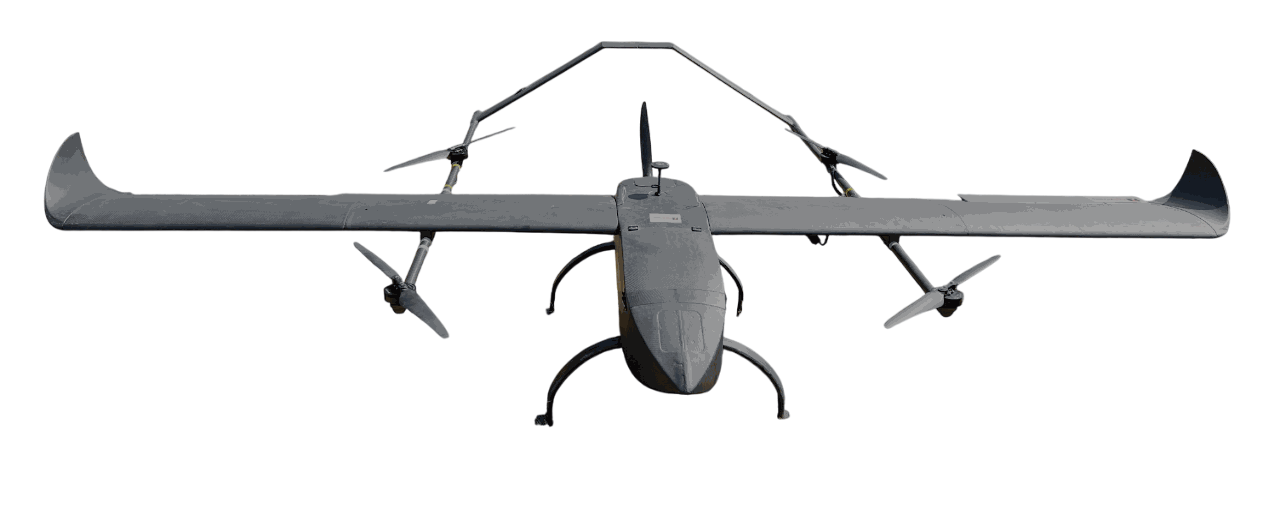

Hans VTOL is a conventional fixed-wing and inverted V-tail configuration flight Aircraft with vertical take off and landing capabilities with ultra-long endurance. UAV with high stability and reliability for long distance surveillance and logistics.

Customers

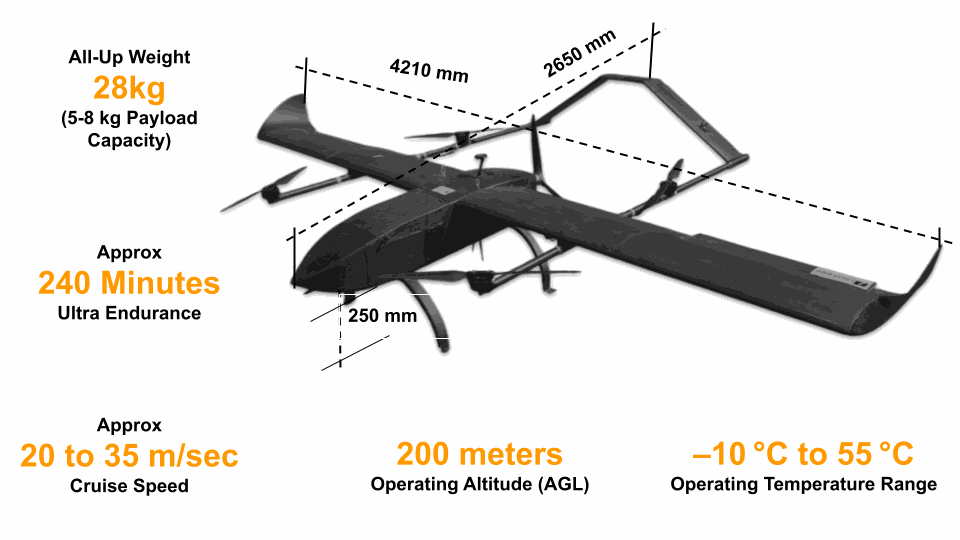

All-Up Weight
28 Kg
(+5kg to 8kg payload capacity)



200 meters
Operating Altitude (AGL)



-10 °C to +55 °C
Operating Temperature Range


6000 meters
Operational Range

Approx
240 Minutes
Ultra Endurance

Approx
20 to 35 m/sec
Cruise Speed

TECHNICAL SPECIFICATION


Capacity

Category

Sub Category

Body Material

Max. Take-off Weight

Payload Capacity

Dimensions (LxBxH)

Operational Altitude

Maximum Ceiling Height

Cruising Speed

Maximum Speed

Communication Range

Operational Range

Indigenous Content

Camera Options

No. of Engine/Motors

Propellers Dimensions

RTK/PPK

GNSS

Battery Capacity

Battery life Cycle

Specification

Hybrid VTOL

Autonomous UAS

Carbon Composite Material

28 kg

8 kg Sensor /Logistic Payload

2650mm x 4210mm x 905mm

120 m AGL restricted by DGCA else 5000 m

5000 m AMSL approx

20 m/s to 35 m/s

40 m/s

20Kms (can be made higher)

50 kms

90% Indigenous Components

Thermal, Survey, RGB, LIDAR, Surveillance

1+4BLDC Motors

1x- 28*12 (3-blade) , 4x- 30*11 (2-blade)

Optional

Multiband RTK compatible

84000mAh

500 Cycles minimum
