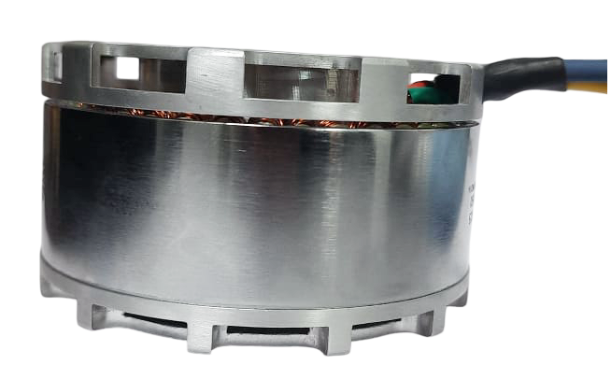

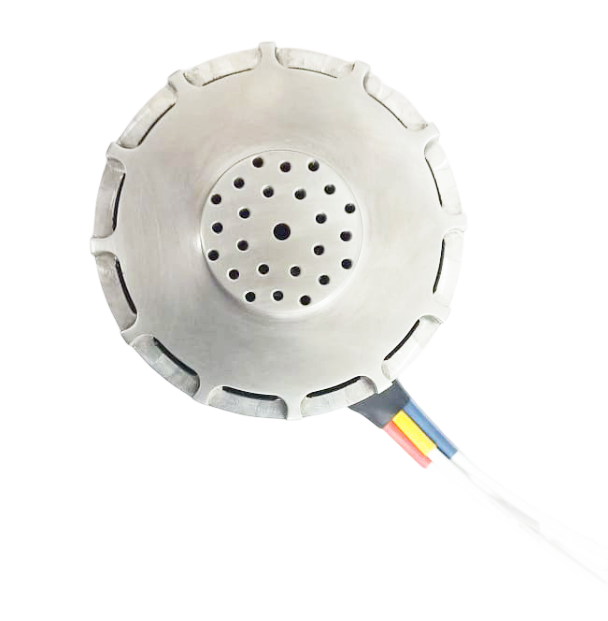

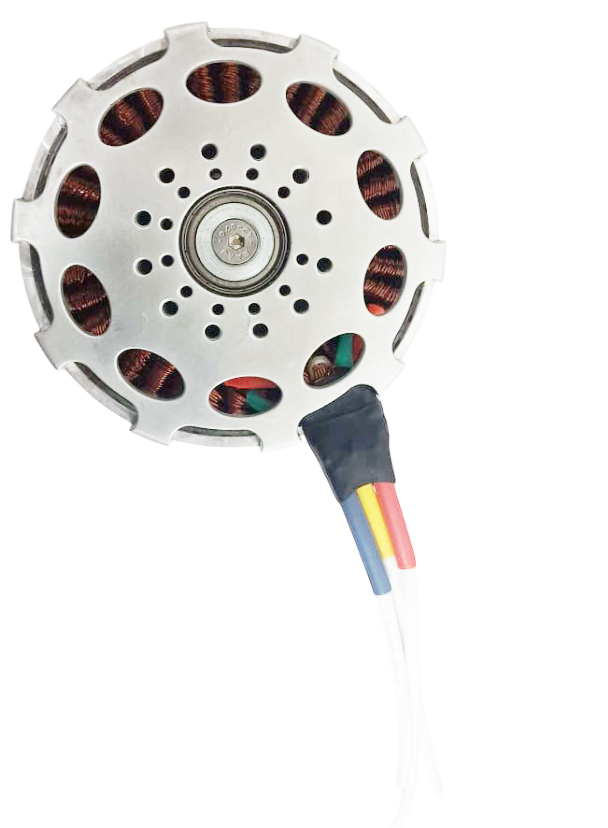

IINDEPRO 6220 150 KV Motor

Description:
IIndepro EB 6220 is a high-performance brushless motor engineered for reliability and efficiency in demanding aerial applications. Featuring a stator diameter of 62mm and a height of 20mm, this robust motor delivers exceptional power and torque while maintaining smooth and stable operation. Crafted with advanced materials such as N45UH magnets, German ball bearings, and multi-stranded high-temperature wire, the motor offers superior torque, longevity, and thermal resistance. Its unique design, including an innovative airflow vortex and impact-resistant structure, ensures optimal cooling and protection, making it ideal for demanding applications requiring both power and durability.

It is optimized for precision control and high-efficiency thrust—ideal for drones, multi-rotors, and fixed-wing platforms requiring strong lift and responsiveness. Designed to handle up to 60A current, it performs seamlessly with aerodynamic effecient propellers, offering optimal propulsion with minimal vibration.

Technical Specifications :

Item NO.: EB 6220
Configuration : 24N28P
Dimension : Φ70×49mm
Stator diameter : 62 mm
Stator Height : 20 mm
Max. RPM at 100% Throttle
Recommended propeller : 23x88
Recommended ESC : 80A ESC
Current Capacity : 60A
No. Of Cells : 6-12S Li-Poly/Li-ion
Weight : 485gm (Including cables)
KV: 600KV

Package Included:
1 x EB 6220 Brushless Motor
